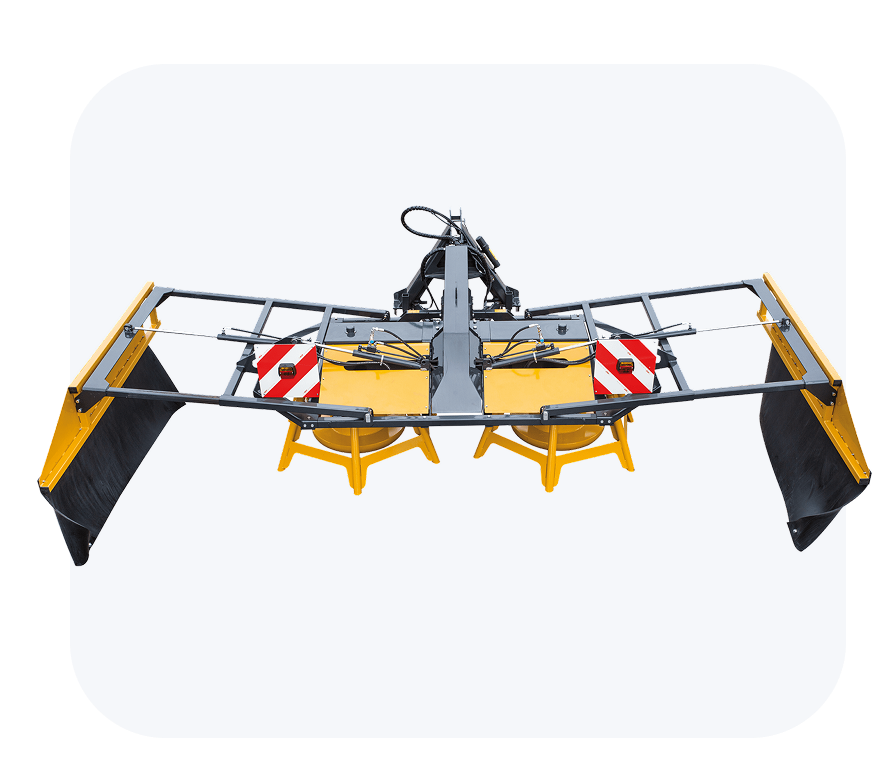

Silo Twist DONAR

A high-performance silage distributor designed for maximum efficiency.

The Silo Twist DONAR is the top model in the range, built for handling the highest feed volumes. With tall 67 cm rotors and a heavy-duty drivetrain delivering high torque, it ensures powerful and consistent distribution performance. The machine is ideal for large-scale operations and contracting work, with standard features including hydraulically adjustable swath limiters and low-maintenance rotor protection.

for tractors with 140 HP or more

rotor height approx. 67 cm

designed for maximum material throughput

Standard equipment of the ST 290 Donar

Three-point attachment cat. 2 and cat. 3

Drive shaft

Rotors individually secured with cam clutch

Standard version suitable for rear mounting (1,000 rpm)

Hydraulically folding and telescopic swath limitation

Electronic control unit with display

Technical Specifications

	ST 290 Donar
Machine width in transport position	2.900 mm
Distribution width	5.000 mm
Power requirement	from 140 PS and above
PTO shaft speed	Rear 1,000 rpm. Front 1,000 rpm.
Net weight	approx. 1,500 kg
Rotor height	approx. 67 cm
Headstock	can be swivelled approx. 20° to the left and right on request
Overload protection	each rotor individually secured with cam clutch

Accessories

Reverse gear

An optional reverse gearbox allows the Silo Twist DONAR to be used with both front and rear PTO, extending its range of applications. The system automatically adjusts rotation direction and speed to match the PTO output, ensuring consistent and reliable performance in all conditions.

Pivoting device

The pivot point positioned close to the three-point attachment allows a wide lateral offset and smooth movement away from the silo wall, reducing the risk of collisions and material damage. A dual-cylinder pivoting system ensures stable operation, while a locking block prevents unintended movement and increases safety during both work and transport.

Wide-angle PTO shaft

A standard PTO shaft is sufficient for most applications, thanks to the pivot point positioned close to the three-point linkage. In specific cases, such as tractors with higher mounting points, a single-sided wide-angle PTO shaft may be required and is available as an optional accessory for the Silo Twist DONAR.

Road lighting system

Optional road equipment improves visibility and safety during transport, especially for larger machines. The system can be quickly and securely attached, ensuring safe operation on public roads, including in low-light conditions.
