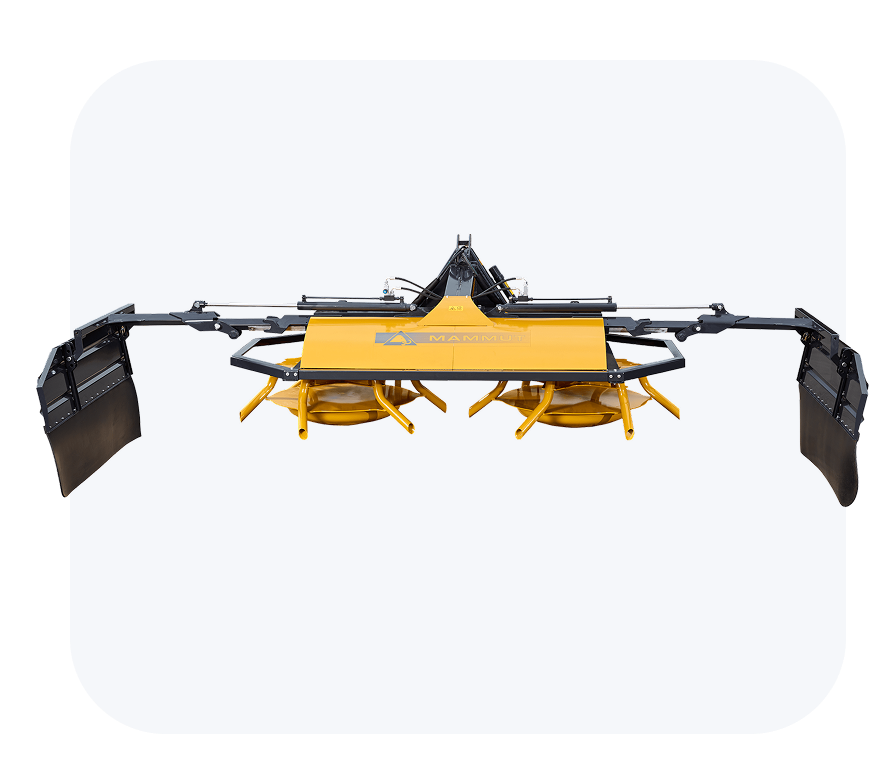

Silo Twist CERES

A robust silage distributor designed for tractors from 100 HP and above.

The Silo Twist CERES is built for handling larger feed volumes with high torque and consistent distribution performance. With a net weight of 1,250 kg, it improves overall machine stability and supports effective compaction. Its reinforced drivetrain ensures reliable operation even with heavy, long-fibre material, while the compact design provides good visibility and convenient handling during transport and daily use.

for tractors with 100 HP or more

rotor height approx. 45 cm

distribution width up to 470 cm

rotors individually secured with cam clutch

Standard equipment of the ST 290 CERES

Three-point attachment cat. 2 and cat. 3

Drive shaft

Rotors individually secured with cam clutch

Standard version suitable for rear mounting (540 rpm)

Hydraulically folding and telescopic swath limitation

Technical Specifications

	ST 290 Ceres
Machine width in transport position	2.900 mm
Distribution width	4.700 mm
Power requirement	from 100 PS and above
PTO shaft speed	Rear 540 rpm. Front 1,000 rpm.
Net weight	approx. 1,250 kg
Rotor height	approx. 45 cm
Headstock	Rigid
Overload protection	each rotor individually secured with cam clutch

Accessories

Reverse gear

The Silo Twist CERES can be equipped with an optional reverse and reduction gearbox, allowing both front and rear mounting and expanding its range of applications. The system adjusts rotor speed to match the PTO output, ensuring efficient operation at 540 rpm (rear) or 1,000 rpm (front).

Electrical control system

Working comfort is ensured through central control of all hydraulic functions. An optional electronic control system allows easy operation of features such as the pivoting device and swath curtains using a simple toggle switch.

Wide-angle PTO shaft

In certain setups, such as with higher-mounted tractors or when lifting at steep angles, a single-sided wide-angle PTO shaft may be required. This option is available as an accessory for the Silo Twist CERES.

Road lighting system

An optional road lighting system improves visibility and safety during transport, especially for inter-company use. Reflective panels further enhance visibility in low-light conditions, supporting safer operation on public roads.
