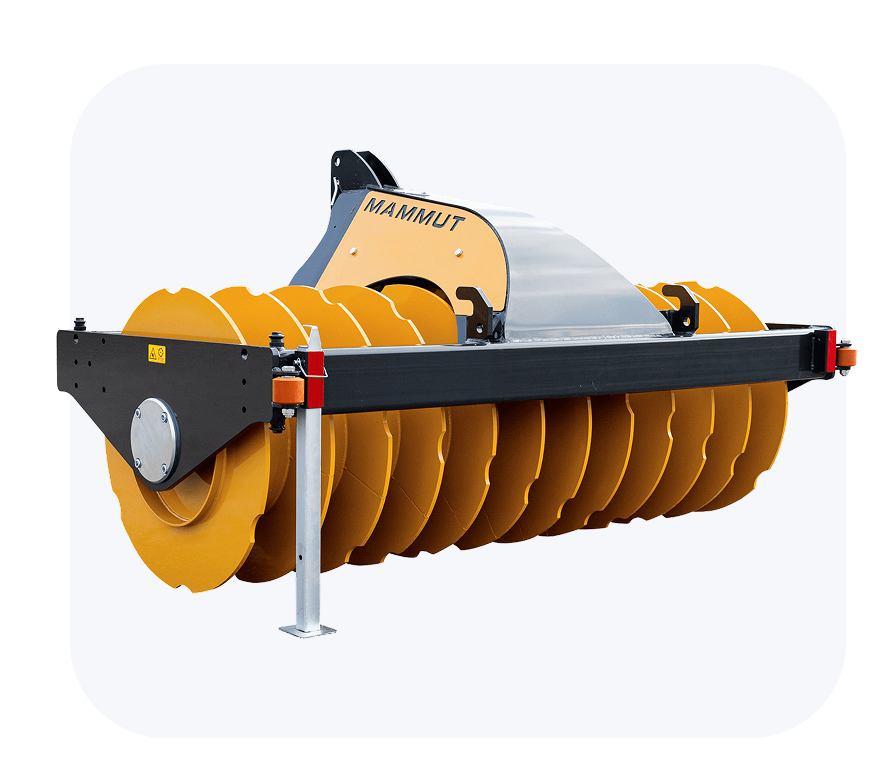

Silo Kompakt RIGID MODELS

A silage roller designed for maximum feed quality and efficient compaction.

The SILO KOMPAKT rigid models are available in working widths of 2.00, 2.50 and 3.00 m, offering flexibility for farms of different sizes. Their solid frame and adjustable overall weight ensure effective compaction and reliable performance in various operating conditions.

rigid frame

roller diameter = 910 mm

2.00 m, 2.50 m or 3.00 m working width

individually adjustable overall weight

SILO KOMPAKT standard equipment – rigid models

Rigid frame

Three-point attachment cat. 2, cat. 3 and cat. 4

Roller and frame can be filled with water

Headstock can be filled with water, sand or gravel

Lateral rollers to protect roller and silo wall

Mechanical towing hook

Technical Specifications

	SK 200 ST	SK 250 ST	SK 300 ST
Frame	Rigid	Rigid	Rigid
Width	2.000 mm	2.500 mm	3.000 mm
Overall roller diameter	910 mm	910 mm	910 mm
Number of discs	10	12	14
Basic weight	approx. 1,310 kg	approx. 1,530 kg	approx. 1,710 kg
Additional weight by water filling (standard equipment)	approx. 500 kg	approx. 600 kg	approx. 700 kg
Maximum weight (only reachable with extra equipment)	approx. 2,850 kg	approx. 3,170 kg	approx. 3,450 kg
Attachment	Three-point cat. 2, cat. 3 and cat. 4	Three-point cat. 2, cat. 3 and cat. 4	Three-point cat. 2, cat. 3 and cat. 4

Accessories

Silage edge compactor

An optional side edge compactor helps create firm and stable edges, especially when working with free-standing silo heaps without walls. It can be mounted on one or both sides, depending on the model, improving safety and compaction efficiency. For operation, dual-acting hydraulic controls are required, with an optional electrical control system available if additional connections are needed.

‍

Electrical control system

An optional electrical control system allows convenient and central operation of all hydraulic accessories. It is particularly useful for tractors with limited hydraulic connections, enabling easy control of functions such as the towing device and side edge compactor via a simple toggle switch.

Lighting system

Optional marker lights improve visibility and safety during transport on public roads. This feature is especially useful for operations involving frequent travel between locations.

Additional weights

The SILO KOMPAKT rollers can be filled with water as standard, with optional magnetite ballast and additional weights available to further increase total mass. These options can be combined to achieve higher compaction performance. Increased weight improves feed density, reduces air pockets and helps minimize losses, resulting in better silage quality and more usable dry matter.

Hydraulic towing device as an option

An optional hydraulically folding towing device supports operation on higher silos by allowing vehicles to be hooked and pulled onto the silo without leaving the cab. For operation, an additional double-acting hydraulic function is required. Mechanical tow hooks are included as standard on all SILO KOMPAKT models.
