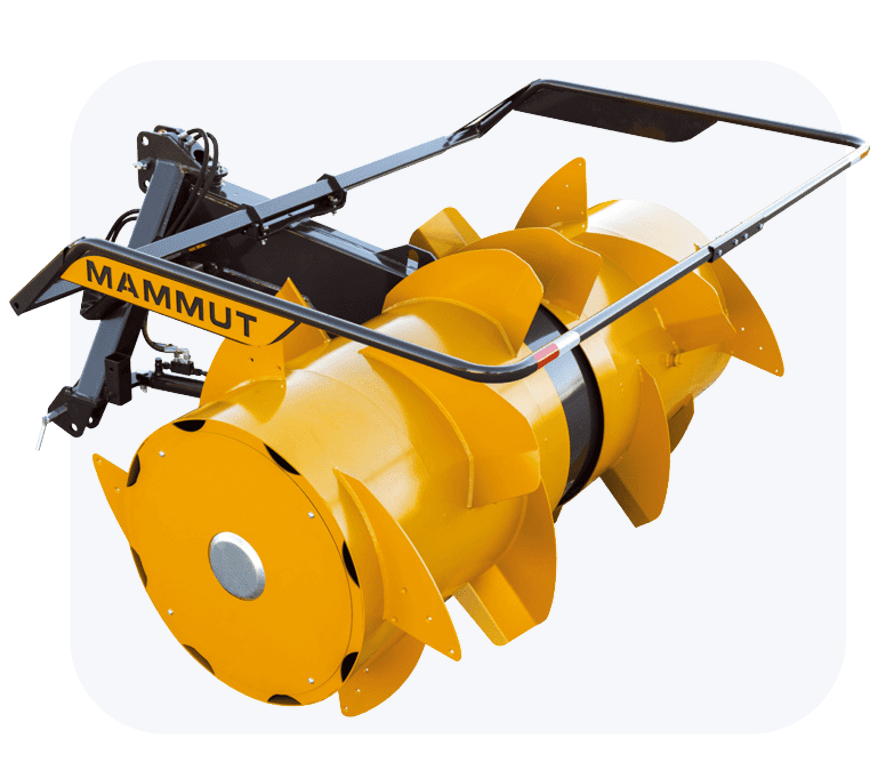

Silo Fox TITAN

A higher-capacity silage distributor designed for small and medium-sized grassland farms.

The Silo Fox TITAN is a more powerful silage distributor than the CLASSIC entry-level model, featuring a larger drum diameter and higher material throughput during distribution. Its higher operating weight also increases impact force in the bunker silo, and all models are available either as rear-mounted units or as front and rear versions with reverse gear.

for tractors with 80 HP and above

drum diameter = 1,150 mm

for small to medium unloading quantities

available as rear/front-rear model

Rear model standard equipment

Three-point attachment cat. 2

Drive shaft

Overload protection built into the distributor

–

Spreading width adjustment

Water-fillable distributor drum

Front and rear model standard equipment

Three-point attachment cat. 2

Drive shaft

Overload protection built into the distributor

Reverse gear for front and rear use

Spreading width adjustment

Water-fillable distributor drum

Technical Specifications

	SF 205 TITAN	SF 245 TITAN
Drum diameter	1.150 mm	1.150 mm
Total drum width	2.050 mm	2.450 mm
Working width	2.700 mm	3.100 mm
Power requirement	ab 70 PS	ab 90 PS
PTO speed rear/front	540 / 1.000	540 / 1.000
Net weight	approx. 690 kg	approx. 790 kg
Additional weight due to water filling (standard)	ca. 450 kg	ca. 450 kg
Swivel range to left and right (optional equipment)	ca. 20°	ca. 20°
Spreading width adjustment	✓	✓

Accessories

<h3>Hydraulic pivoting device</h3><p>The hydraulic pivoting device makes feed distribution easier and more precise across the bunker silo. With the pivot point positioned close to the three-point attachment, it allows a wide lateral offset and makes it easy to move the machine away from the silo wall. On the Silo Fox TITAN, the pivoting device is equipped with two cylinders, while a locking block helps prevent jerky or unintended movements for safer operation and transport.</p>

<h3>Drum widening</h3><p>Optional drum extensions are available for the Silo Fox TITAN in 2 × 20 cm or 2 × 36 cm. This allows the silage spreader to be better matched to different tractor or track widths.</p>

<h3>Cam clutch</h3><p>The Silo Fox TITAN comes standard with fully integrated overload protection built into the distributor. As an alternative, it can also be equipped with a cam clutch for lower wear, especially in demanding contractor use.</p>

<h3>Lighting kit</h3><p>For improved visibility and safer road travel with front-mounted attachments, the Silo Fox TITAN can be fitted with an optional road lighting system. This is especially useful for inter-company use. When combined with the optional deflector plate package, the LED lighting kit can be attached and removed quickly thanks to magnetic brackets, saving time during harvesting work.</p>

<h3>Deflector plate set</h3><p>The deflector plate set is available as an optional accessory for the SILO FOX range. It consists of vertical plates at the rear of the machine and a foldable plate above the headstock. This helps improve material flow, reduces the risk of forage jams, and keeps the tractor cleaner and better protected, especially when working with long grass fibres.</p>

<h3>Oil Drive</h3><p>If a PTO-driven carrier vehicle is not available, the Silo Fox TITAN can also be operated with a factory-installed hydraulic motor. For proper operation, a minimum hydraulic output of approximately 100 L/min is required. A wide range of accessories is also available for wheel loaders and telescopic loaders, including attachments and adapters for different equipment configurations.</p>
