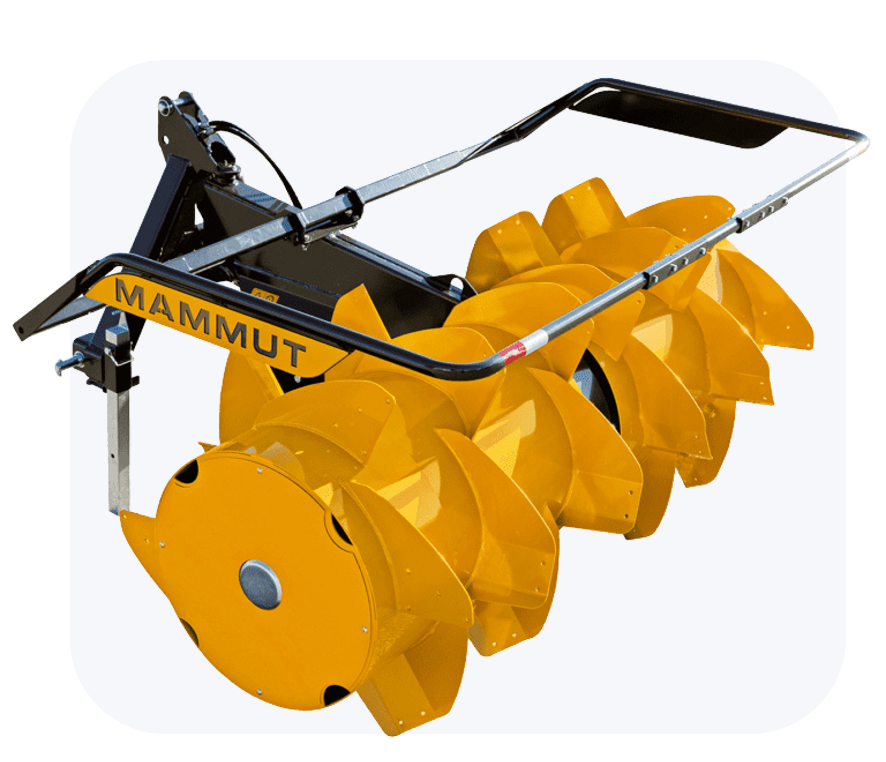

Silo Fox CLASSIC

A silage distributor designed for small and medium-sized grassland farms.

The Silo Fox CLASSIC is a compact entry-level silage distributor designed for dairy farms handling smaller feed quantities. Its compact design makes it ideal for smaller carrier vehicles, and models are available as rear-mounted units or as front and rear versions with reverse gear.

for tractors with 60 HP or more

drum diameter = 1,040 mm

for low unloading quantities

available as rear/front-rear model

Rear model standard equipment

Three-point attachment cat. 2

Drive shaft with overload protection

Water-fillable distributor drum

Scatter width adjustment from model SF 195 CLASSIC

Front and rear model standard equipment

Three-point attachment cat. 2

Drive shaft; overload protection built into the distributor

Reverse gear for front and rear use

Water-fillable distributor drum

Scatter width adjustment from model SF 195 CLASSIC

Technical Specifications

Technical data	SF 175 CLASSIC	SF 195 CLASSIC	SF 215 CLASSIC
Drum diameter	1.040 mm	1.040 mm	1.040 mm
Total drum width	1.750 mm	1.950 mm	2.150 mm
Working width	2.500 mm	2.650 mm	2.850 mm
Power requirement	ab 60 PS	ab 60 PS	ab 70 PS
PTO speed rear/front	540 / 1.000	540 / 1.000	540 / 1.000
Net weight	approx. 460 kg	approx. 480 kg	approx. 530 kg
Additional weight due to water filling (standard)	ca. 350 kg	ca. 350 kg	ca. 350 kg
Swivel range to left and right (optional equipment)	ca. 20 °	ca. 20 °	ca. 20 °
Spreading width adjustment	–	✓	✓

Accessories

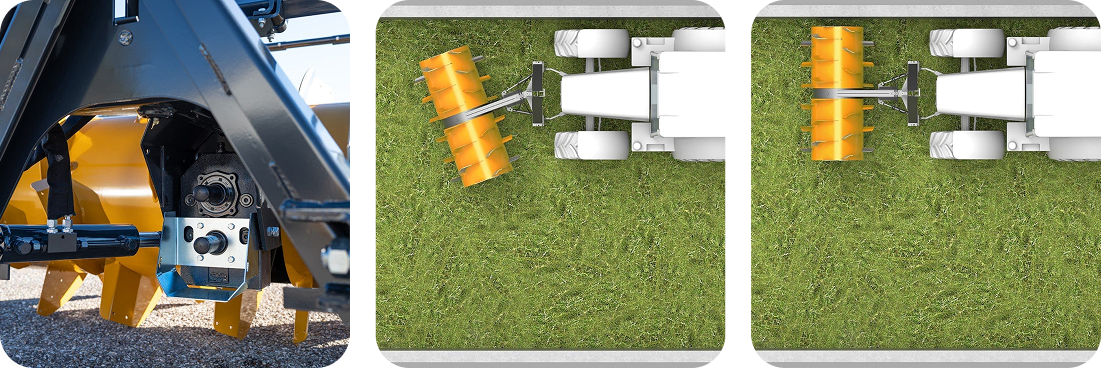

Hydraulic pivoting device

The hydraulic pivoting device distributes feed evenly across the entire bunker silo, reaching even the far corners. Its pivot point near the three-point attachment allows a wide lateral offset and easy movement away from the silo wall. A locking block prevents unintended movement, improving safety during operation and transport.

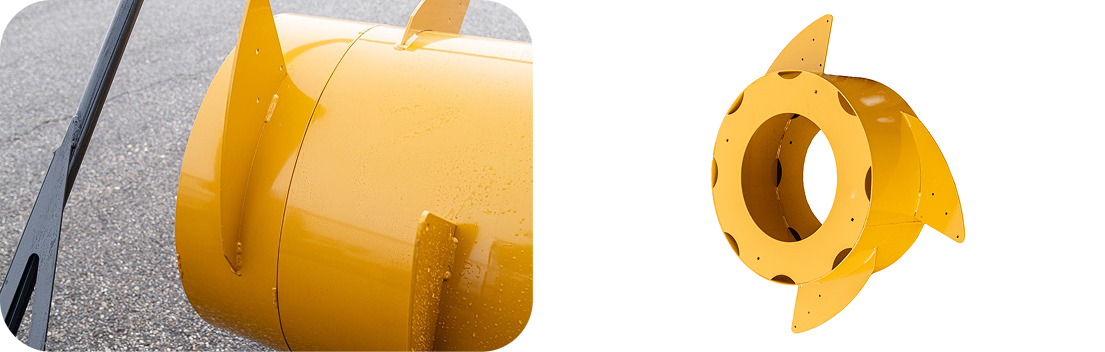

Drum widening

Optional drum extensions are available for the Silo Fox CLASSIC in 2 × 20 cm or 2 × 30 cm. These allow the silage spreader to be easily adapted to different tractor widths.

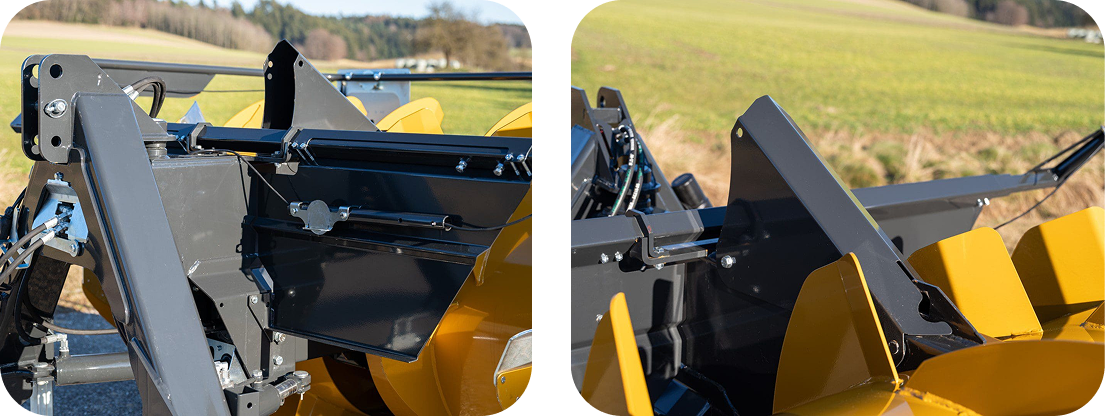

Deflector plate set

The deflector plate set is available as an optional accessory for the SILO FOX silage distributors. It includes vertical plates at the rear of the machine and a foldable plate above the headstock, helping forage slide off smoothly and preventing jams or tractor contamination. This option is particularly useful for loader wagon grass and long-fibre forage. The deflector plate set is available for all models.

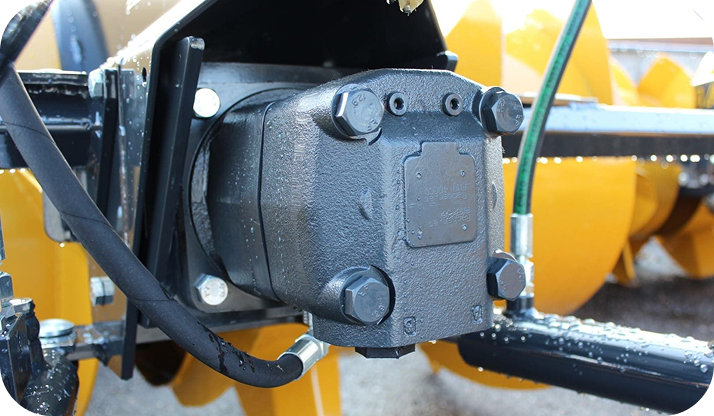

Oil Drive

If a carrier vehicle with a PTO drive is not available, the Silo Fox CLASSIC can also be operated using an optional hydraulic motor. For proper operation, a minimum hydraulic flow of approximately 90 L/min is required. A range of accessories is also available for wheel loaders and telescopic loaders, including attachments and adapters to suit different equipment setups.
