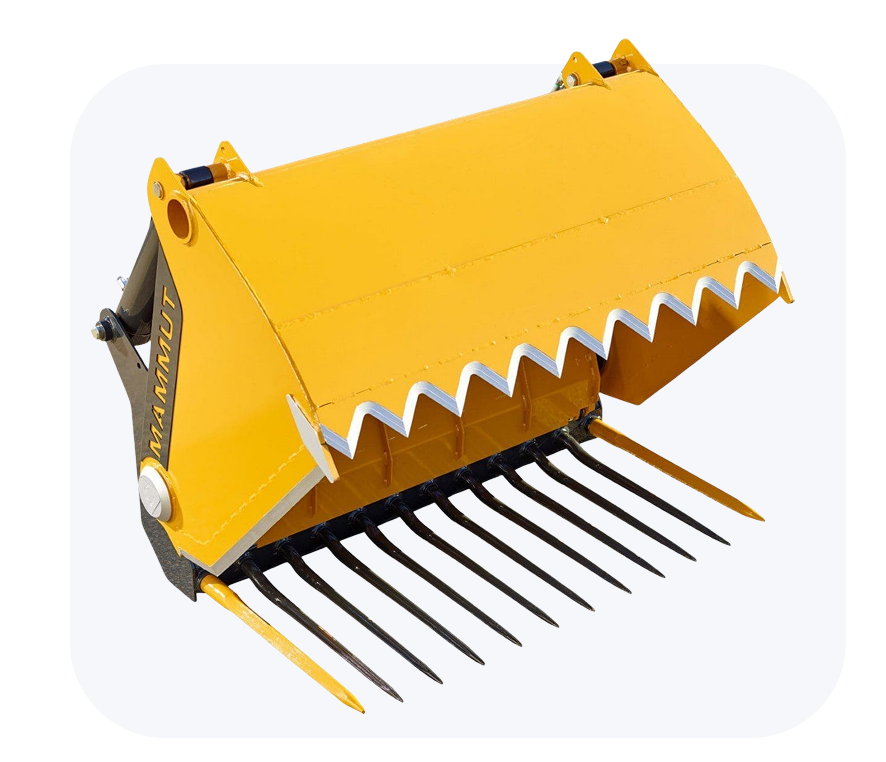

Silo Cat N

A compact shear grab designed for smaller loaders and farmyard applications.

The SILO CAT Type N features a lightweight and compact design, making it ideal for use with small front loaders and compact carrier vehicles. Despite its size, it delivers efficient and reliable performance, ensuring fast and convenient handling in daily operations.

lightweight design

ideal for smaller carrier vehicles

block height approx. 70 cm

capacity from 0.48 m³ to 0.92 m³

Standard equipment for the Silo Cat N

Robust cutting bucket with welded Hardox knife cutter

Two Ø 90 mm hydraulic cylinders for type SC 90 N
Two Ø 100 mm hydraulic cylinders for type SC 120 N, SC 150 N & SC 170 N

Tines made of high-quality spring steel

Powder-coated carrier frame

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

Technical data	SC 90 N	SC 120 N	SC 150 N	SC 170 N
Block width	0,91 m	1,19 m	1,44 m	1,69 m
Block height	0,70 m	0,70 m	0,70 m	0,70 m
Block depth	0,78 m	0,78 m	0,78 m	0,78 m
Fill volume	0,48 m³	0,64 m³	0,78 m³	0,92 m³
Cylinders Ø (2 pieces)	90 mm	100 mm	100 mm	100 mm
Net weight	360 kg	420 kg	480 kg	540 kg
Number of tines	8	10	12	14

Accessories

Attachments

A wide range of attachment options allows the SILO CAT to be used with tractors, front loaders, wheel loaders and telehandlers. This ensures quick and easy implement changes without time-consuming adjustments.

All attachments are bolted for simple replacement, with no welding required, while the compact and lightweight design makes the N series especially suitable for smaller carrier vehicles.

Corn plate

A fully enclosed rear wall prevents material loss during transport, ensuring clean and efficient handling of finely chopped silage. The rear section opens as standard for easy unloading, while the corn plate keeps the material compact within the cutting area. An optional floor plate is available to cover the tines when needed.

Hinged floor plate

An optional floor plate covers the tines to prevent loss of fine material during transport, improving efficiency and cleanliness. Available for all SILO CAT models, the Type N offers both hydraulic and mechanical hinged versions.

The hydraulic option allows easier operation, especially for carrier vehicles with limited hydraulic functions. The hinged floor plate cannot be combined with the pusher option.

Pusher

An optional hydraulic pusher allows easy and controlled unloading of silage blocks, making it ideal for feeding systems or storage. It is especially useful in low-clearance areas, enabling material to be transferred without tilting the attachment.

For operation, a double-acting hydraulic function is required, with a sequence valve available as an option for machines with limited hydraulic connections.

Control units and valves

For machines equipped with hydraulic accessories such as a lifting frame, floor plate or pusher, additional control valves are recommended to ensure smooth operation. This is especially useful for carrier vehicles with limited hydraulic connections.

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the attachment without oil loss. A wide range of options is available to match different machine setups.
