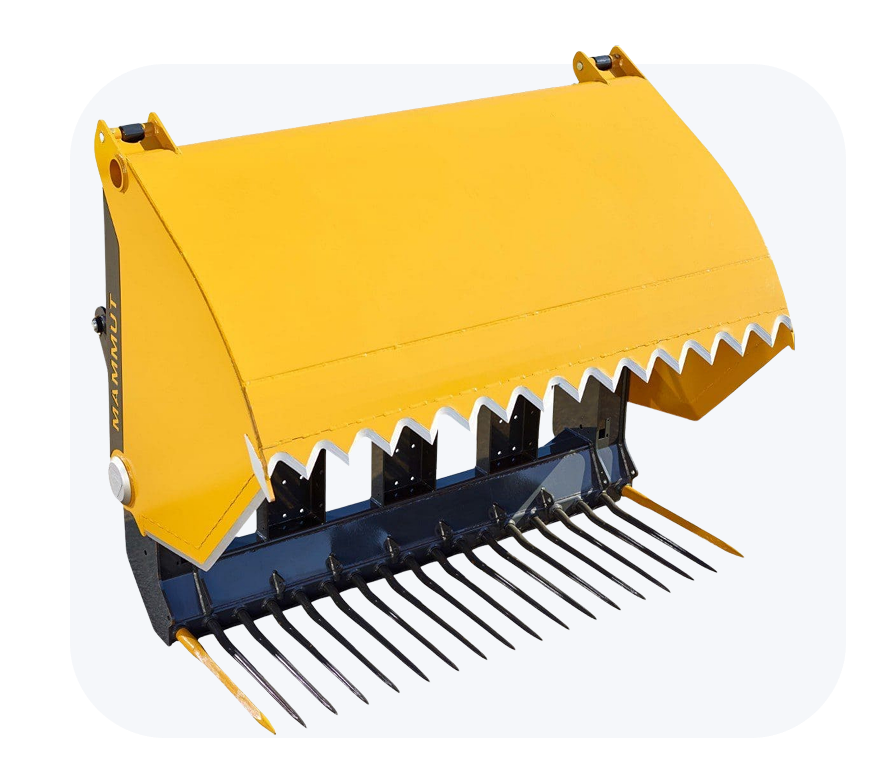

Silo Cat H

A high-capacity shear grab designed for larger machines and demanding applications.

The SILO CAT Type H is ideal for tractors above 100 HP, as well as wheel loaders and telehandlers. With a large opening height of approx. 110 cm, it is suitable for handling both silage and round bales, offering strong performance for high-volume operations.

also suitable for round bales

ideal for large wheel loaders and telehandlers

block height approx. 110 cm

capacity from 1.48 m³ to 2.12 m³

Standard equipment, Silo Cat H

Robust cutting bucket with welded Hardox knife cutter

Two hydraulic cylinders, Ø 110 mm

Tines made of high-quality spring steel

Powder-coated carrier frame

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SC 170 H	SC 195 H	SC 220 H	SC 240 H
Block width	1,69 m	1,94 m	2,19 m	2,41 m
Block height	1,10 m	1,10 m	1,10 m	1,10 m
Block depth	0,80 m	0,80 m	0,80 m	0,80 m
Fill volume	1,48 m³	1,71 m³	1,93 m³	2,12 m³
Cylinders Ø (2 pieces)	110 mm	110 mm	110 mm	110 mm
Net weight	840 kg	930 kg	1.020 kg	1.110 kg
Number of tines	14	16	18	20

Accessories

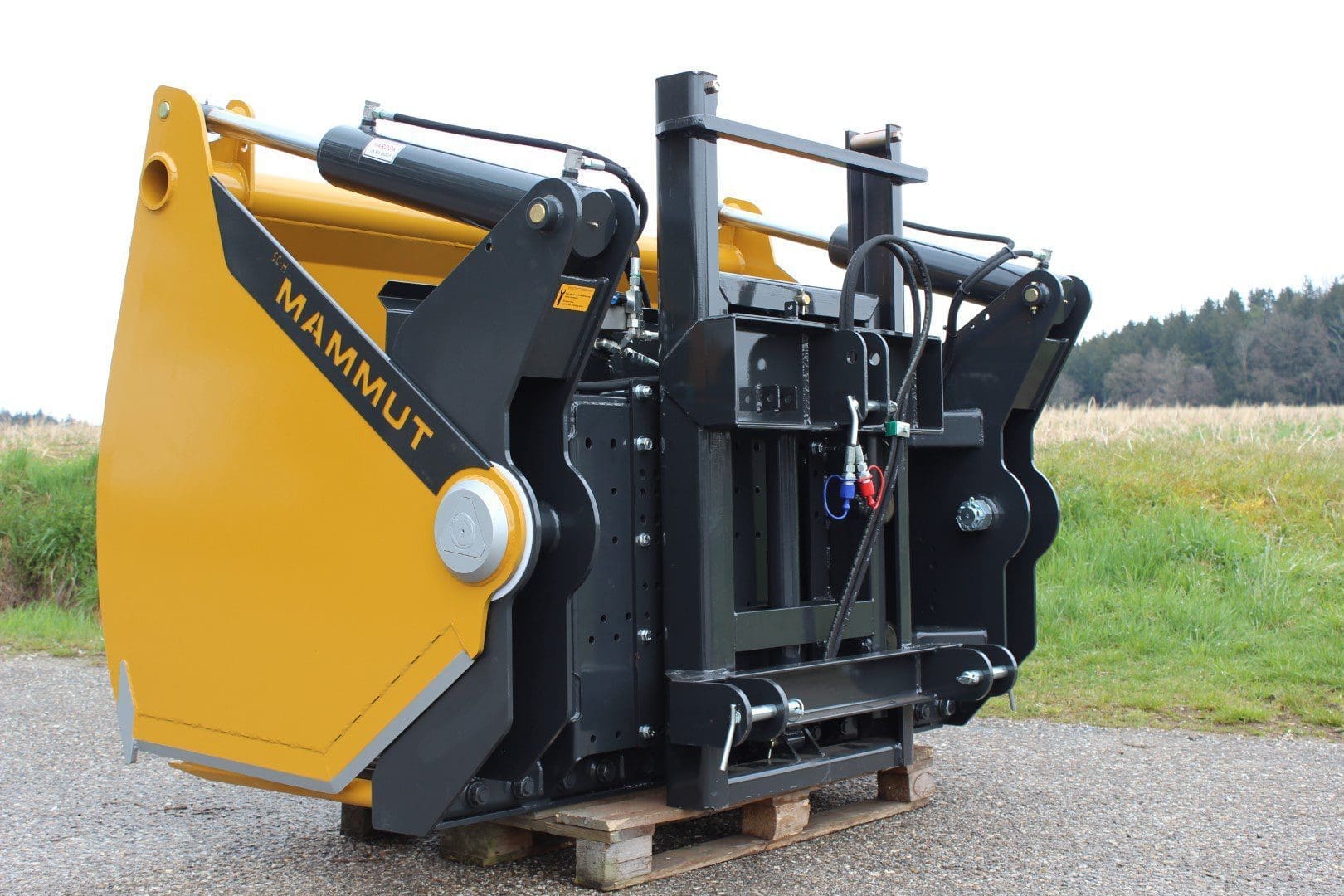

Attachments

A wide range of attachment options allows the SILO CAT to be used with tractors, front loaders, wheel loaders and telehandlers. This ensures quick and easy implement changes without time-consuming adjustments.

All attachments are bolted for simple replacement, with no welding required, making it easy to adapt the machine when switching between different carrier vehicles.

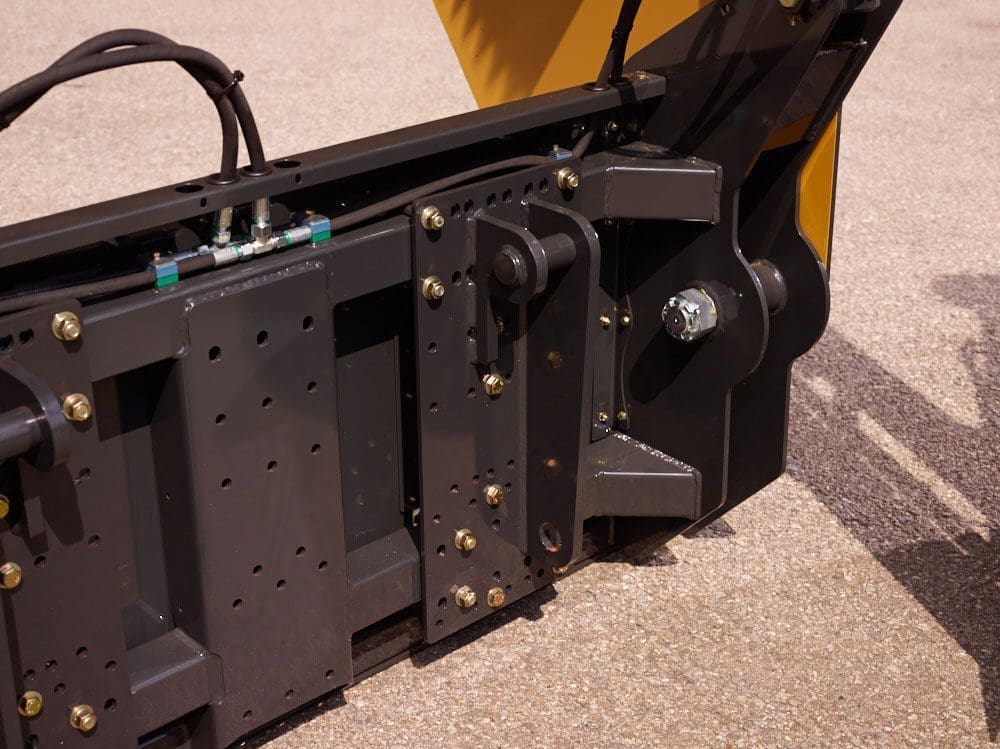

Corn plate

A fully enclosed rear wall prevents material loss during transport, ensuring clean and efficient handling of fine silage. The rear section opens as standard for easy unloading, while the integrated corn plate keeps the material compact. An optional floor plate is available to cover the tines when needed.

‍

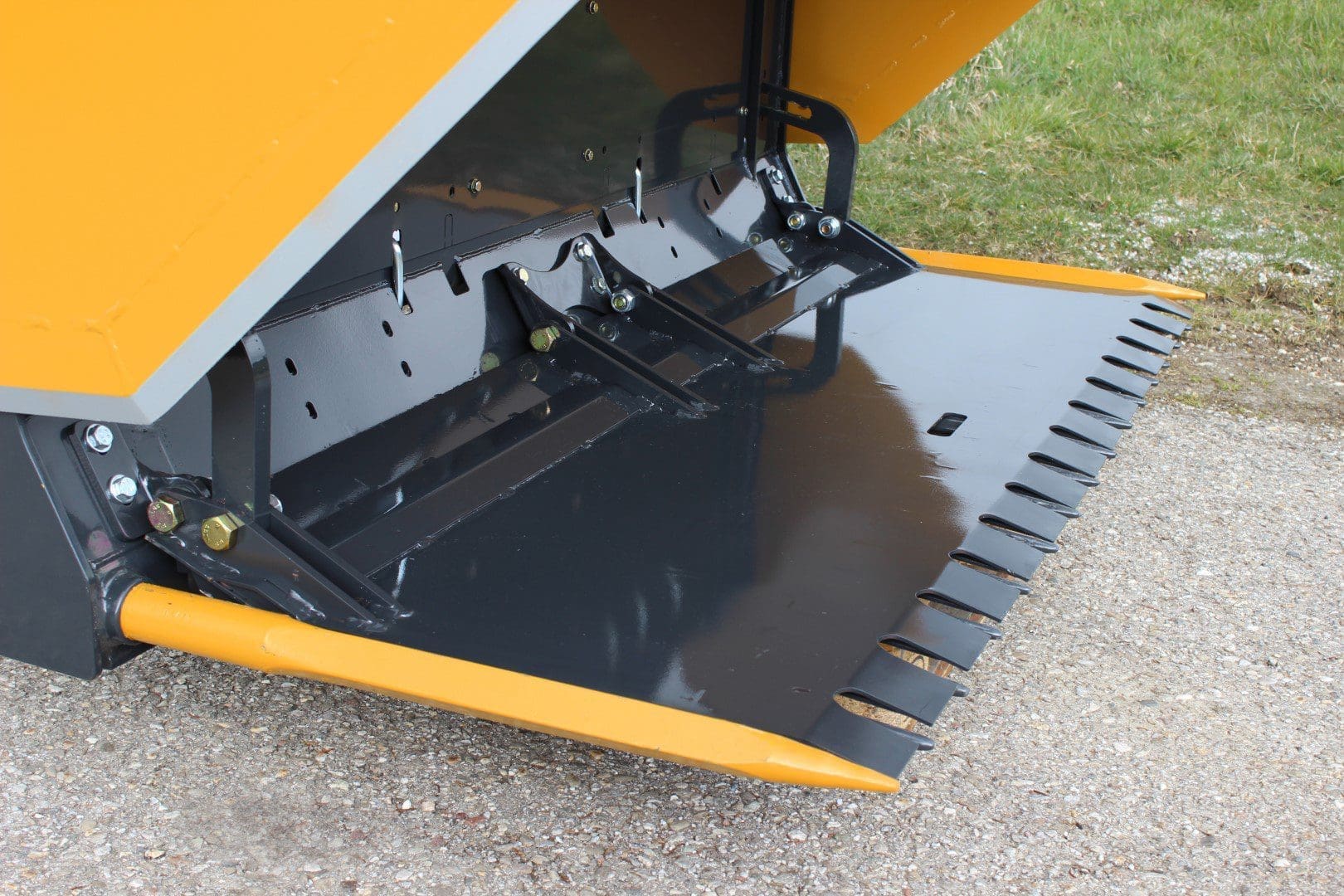

Hinged floor plate

An optional floor plate is available for all SILO CAT models to cover the tines and prevent loss of fine material during transport. For the Type M, both hydraulic and mechanical hinged versions are available.

The hydraulic option offers easier operation, especially for machines with limited hydraulic functions. The hinged floor plate cannot be combined with the pusher option.

Control units and valves

For machines equipped with hydraulic accessories such as a lifting frame, floor plate or pusher, additional control valves are recommended to ensure smooth operation. This is especially useful for carrier vehicles with limited hydraulic connections.

Control units and valves

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the attachment without oil loss. A wide range of options is available to match different machine setups.
