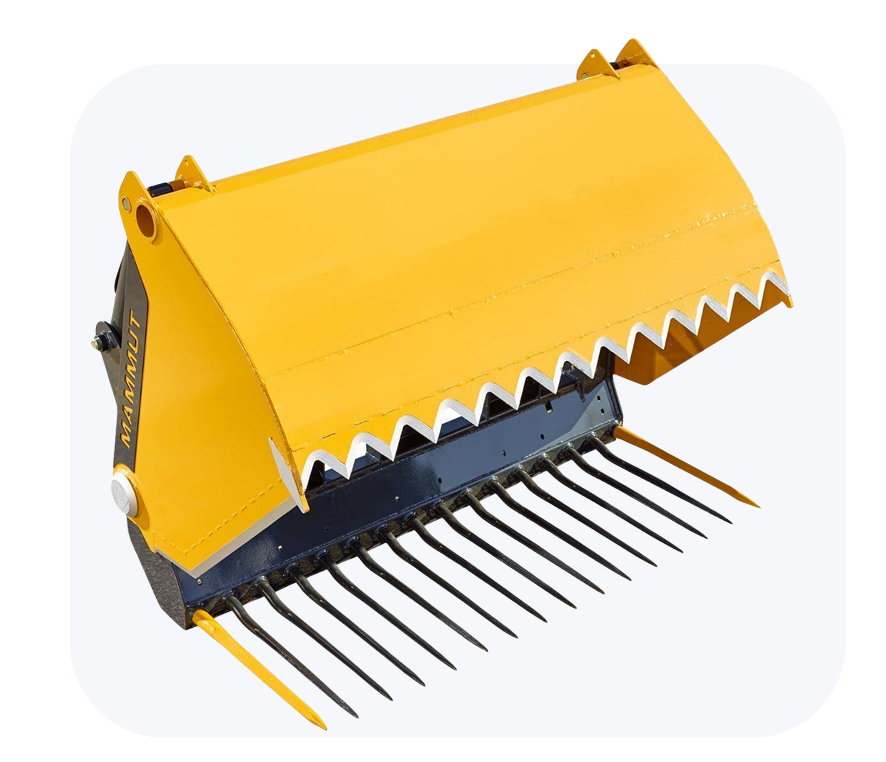

Silo Cat M

A versatile mid-sized shear grab for a wide range of applications.

The SILO CAT Type M offers a balanced combination of capacity and flexibility, making it suitable for tractors, front loaders, wheel loaders and telehandlers. With a block height of approx. 80 cm, it delivers efficient silage extraction across different working conditions.

compact design

ideal for front loaders and small to medium wheel loaders

block height approx. 80 cm

capacity from 1.05 m³ to 1.51 m³

Standard equipment for the Silo Cat M

Robust cutting bucket with welded Hardox knife cutter

Two hydraulic cylinders, Ø 110 mm

Tines made of high-quality spring steel

Powder-coated carrier frame

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SC 170 M	SC 195 M	SC 220 M	SC 240 M
Block width	1,69 m	1,94 m	2,19 m	2,41 m
Block height	0,80 m	0,80 m	0,80 m	0,80 m
Block depth	0,78 m	0,78 m	0,78 m	0,78 m
Fill volume	1,05 m³	1,21 m³	1,36 m³	1,51 m³
Cylinders Ø (2 pieces)	110 mm	110 mm	110 mm	110 mm
Net weight	655 kg	730 kg	805 kg	880 kg
Number of tines	14	16	18	20

Accessories

Attachments

A wide range of attachment options allows the SILO CAT to be used with tractors, front loaders, wheel loaders and telehandlers. This ensures quick and easy implement changes without time-consuming adjustments.

All attachments are bolted for simple replacement, with no welding required, making it easy to adapt the machine when switching between different carrier vehicles.

Corn plate

A fully enclosed rear wall prevents material loss during transport, ensuring clean and efficient handling of fine silage. The rear section opens as standard for easy unloading, while the integrated corn plate keeps the material compact. An optional floor plate is available to cover the tines when needed.

Hinged floor plate

An optional floor plate is available for all SILO CAT models to cover the tines and prevent loss of fine material during transport. For the Type M, both hydraulic and mechanical hinged versions are available.

The hydraulic option offers easier operation, especially for machines with limited hydraulic functions. The hinged floor plate cannot be combined with the pusher option.

Pusher

An optional hydraulic pusher enables easy and controlled unloading of silage blocks, making it ideal for feeding systems, storage and loading feed mixers. It is especially useful in low-clearance areas, allowing material to be transferred without tilting the attachment.

For operation, a double-acting hydraulic function is required, with a sequence valve available as an option for machines with limited hydraulic connections.

Control units and valves

For machines equipped with hydraulic accessories such as a lifting frame, floor plate or pusher, additional control valves are recommended to ensure smooth operation. This is especially useful for carrier vehicles with limited hydraulic connections.

‍

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the attachment without oil loss. A wide range of options is available to match different machine setups.
