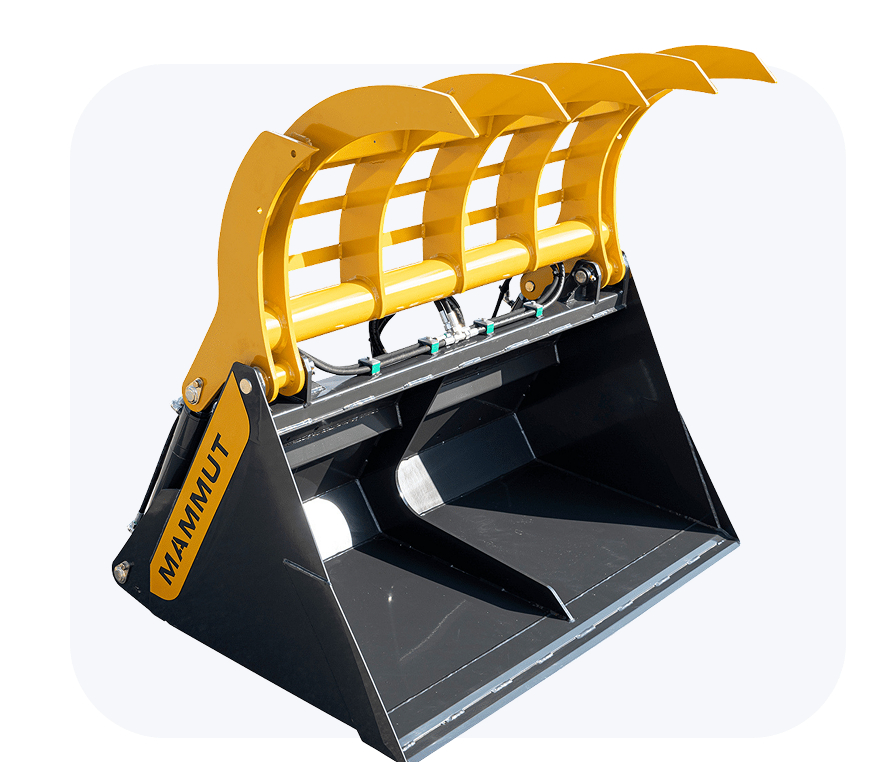

Silo Grip SMART

A compact and versatile silage grab bucket for smaller carrier vehicles.

The SMART Silo Grip is designed with a lightweight yet durable construction, making it ideal for farmyard loaders, compact loaders and small front loaders. Its top gripper design allows full material removal right up to the silo wall, ensuring efficient and precise operation.

lightweight yet robust design

ideal for smaller carrier vehicles

optimized top gripper design

working widths from 1.60 m to 2.00 m

Standard equipment for the SMART Silo Grip

Rugged top gripper

Two hydraulic cylinders, Ø 80 mm

Closed bucket bottom including Hardox scraper strips

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SG 160 S	SG 180 S	SG 200 S
Bucket width	1,60 m	1,80 m	2,00 m
Net weight	490 kg	530 kg	570 kg
Volume	0,85 m³	0,95 m³	1,05 m³
Cylinder Ø	80 mm	80 mm	80 mm
Number of cylinders	2	2	2
Mounting points	2	2	2

Accessories

Attachments

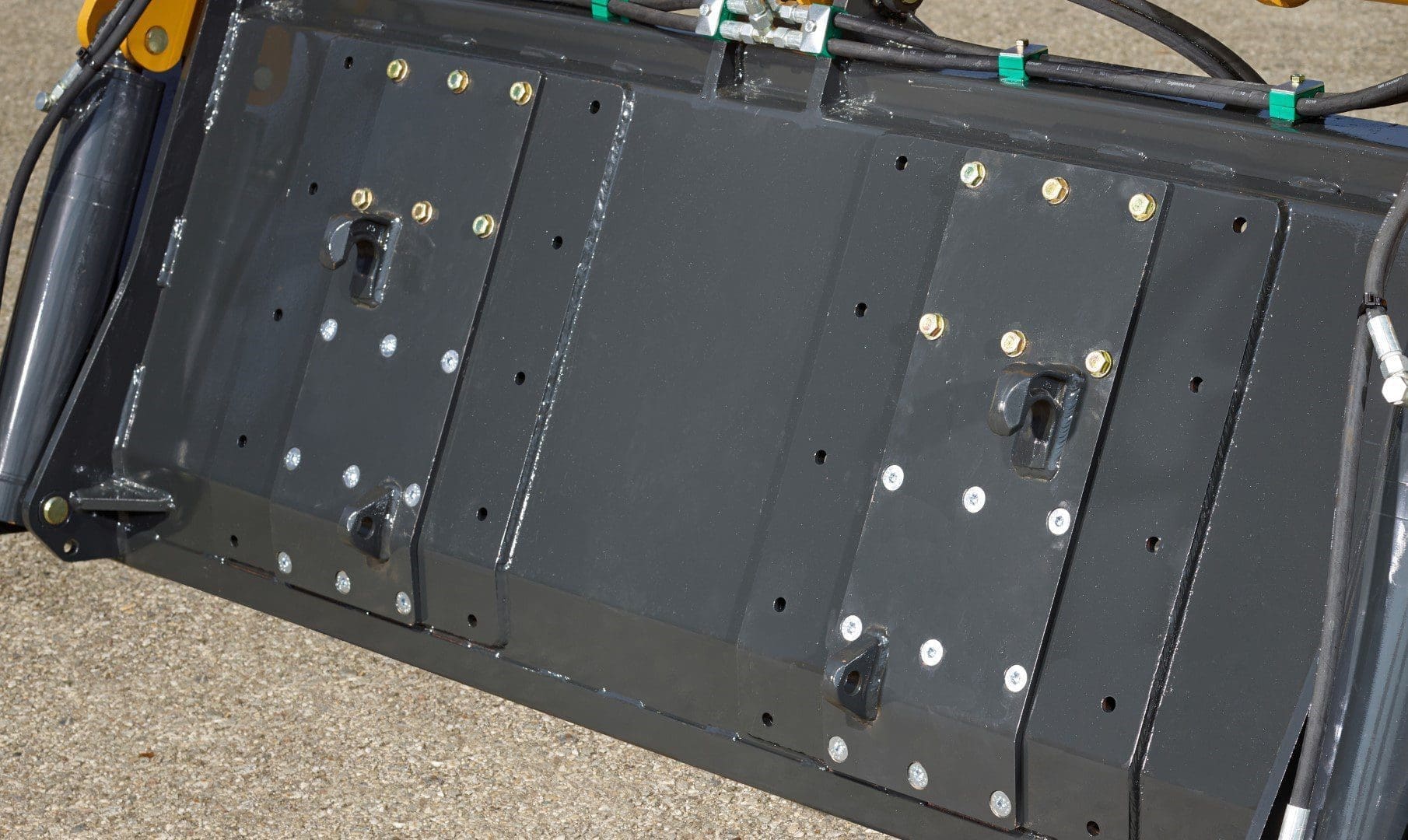

Bolted attachment plates provide a wide range of mounting options for front loaders and farmyard loaders, allowing easy adaptation to different carrier vehicles. Optional universal perforated plates enable quick connection to machines with varying attachment systems, improving flexibility while saving time and costs in daily operation.

Additional tines

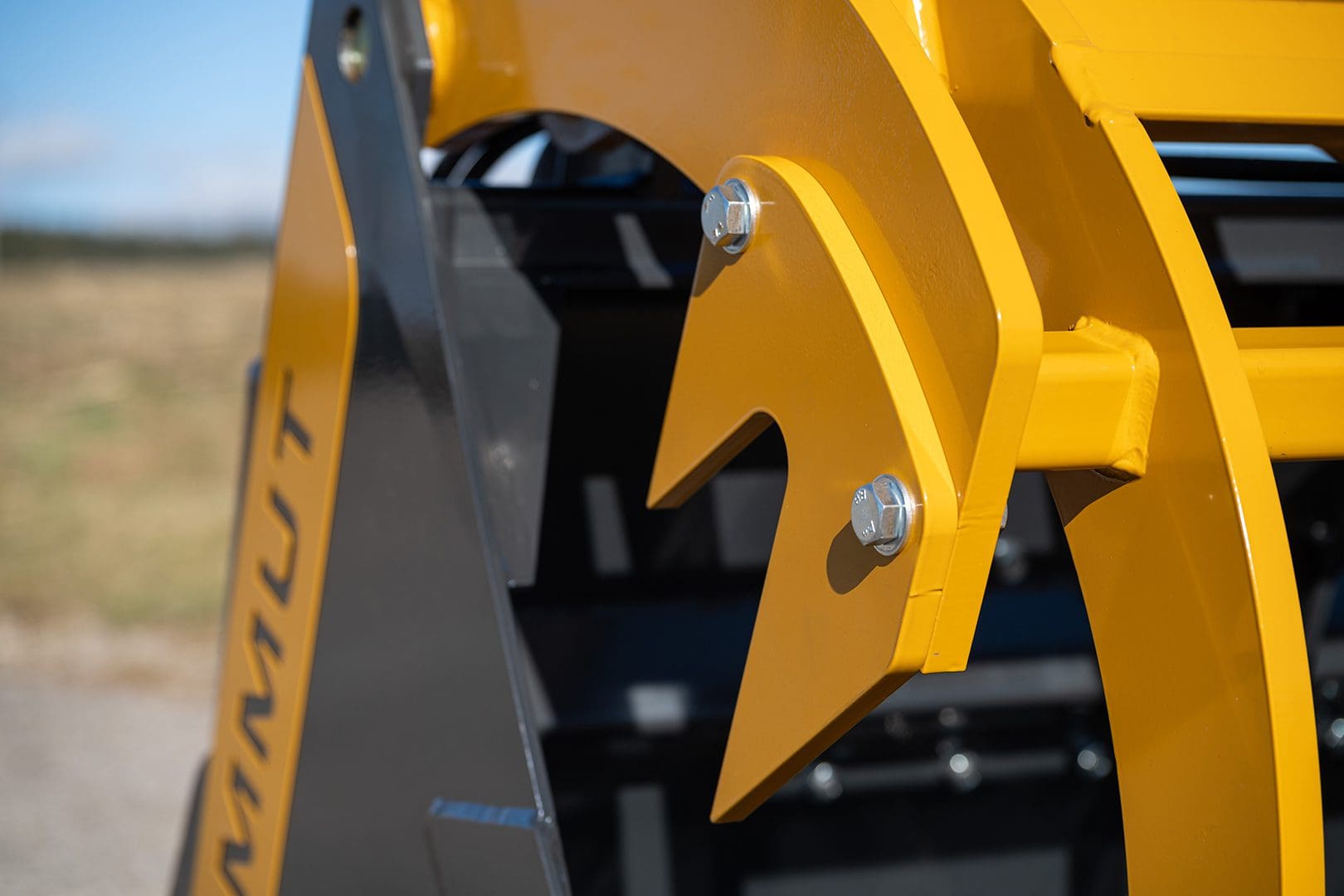

Optional side tines help retain fine material during transport, improving handling of loose or small-particle silage. The set includes two additional tines for increased efficiency and cleaner operation.

Valves

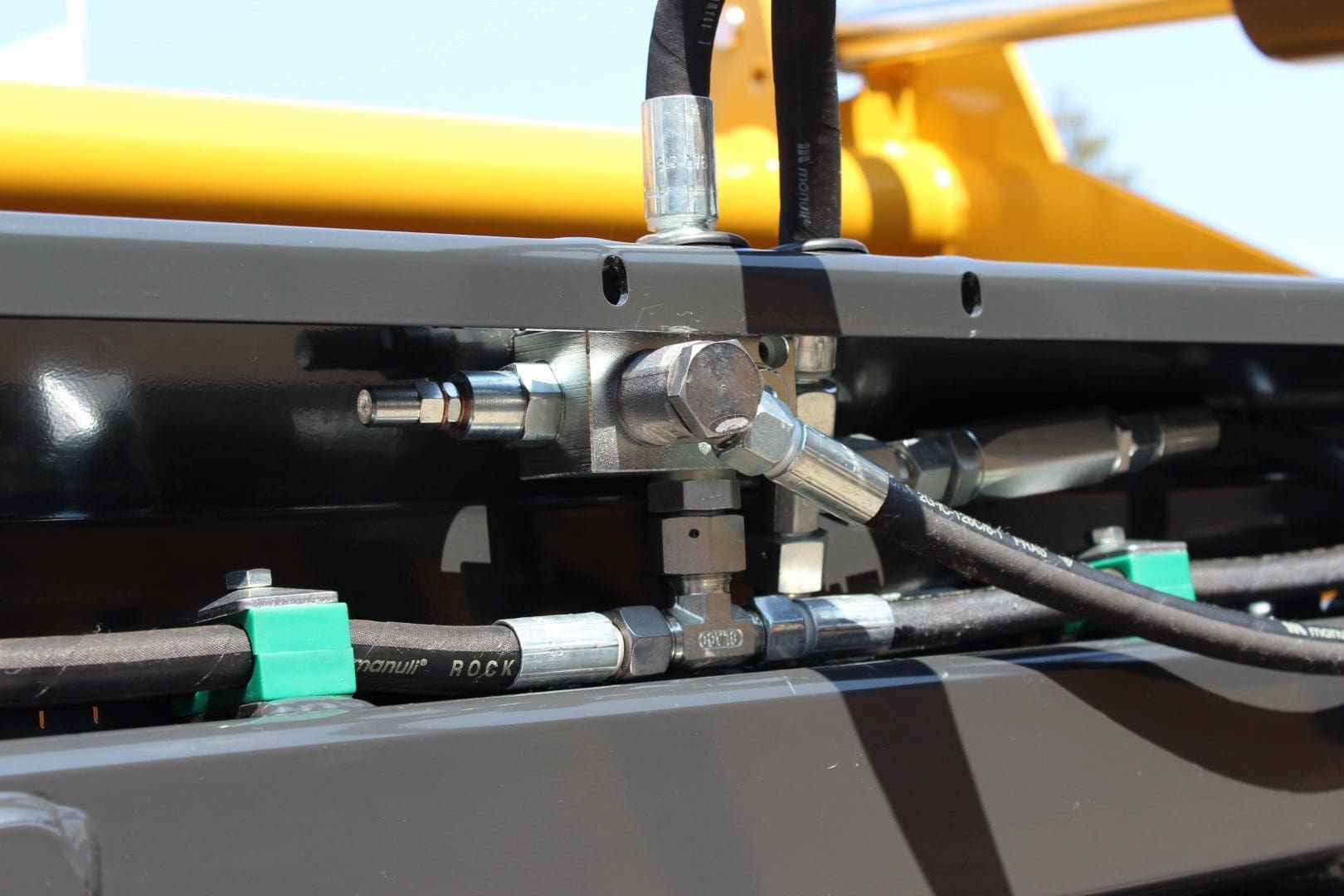

Optional safety valves protect the system under high operating pressure and improve control during use. A pressure relief valve prevents damage above 210 bar, while a load-holding valve helps avoid unintended closing of the gripper on open hydraulic systems.

Multi-hose coupler

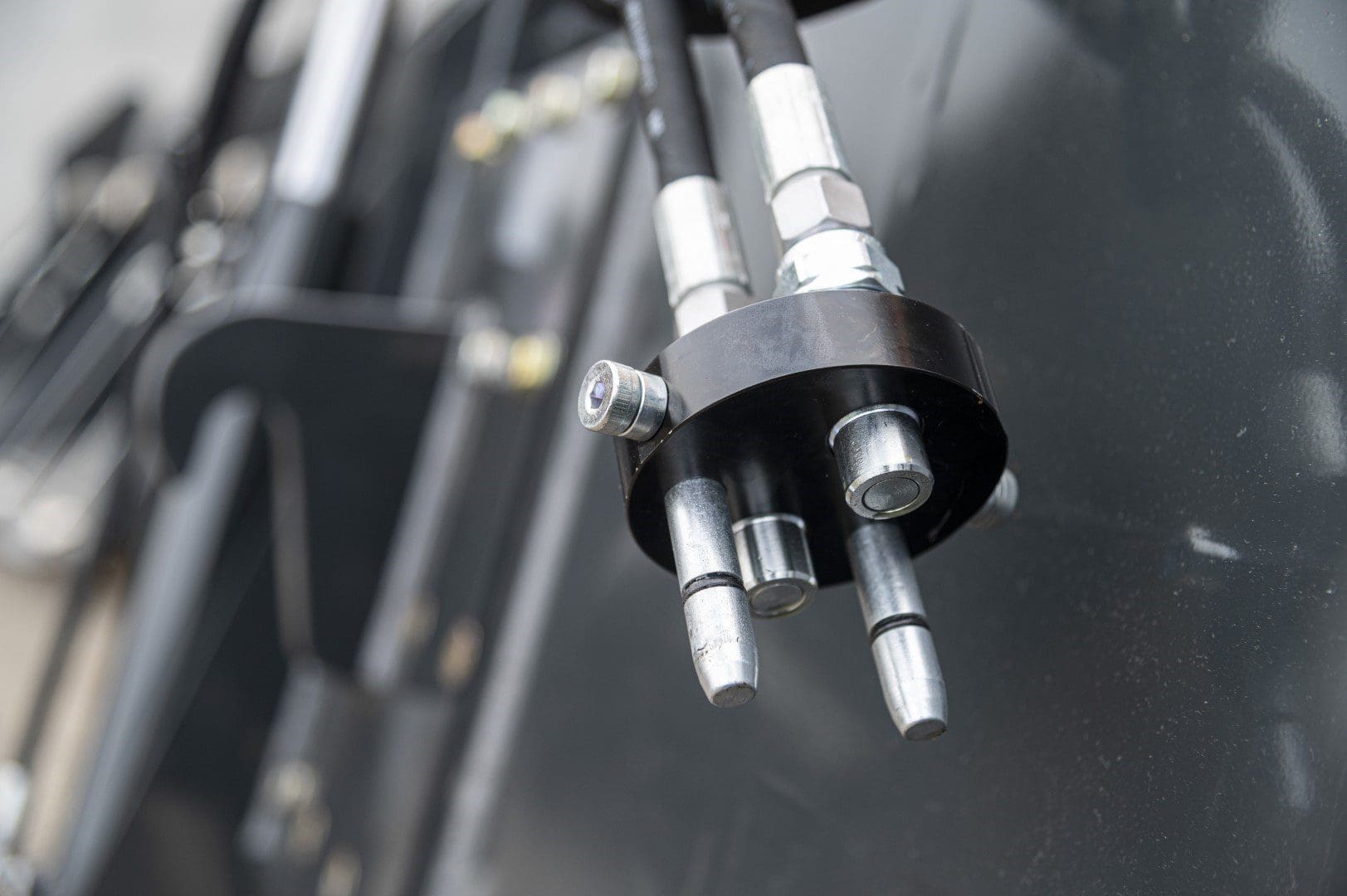

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the gripper bucket, ensuring clean operation without oil loss. A wide range of options is available to match different machine setups.
