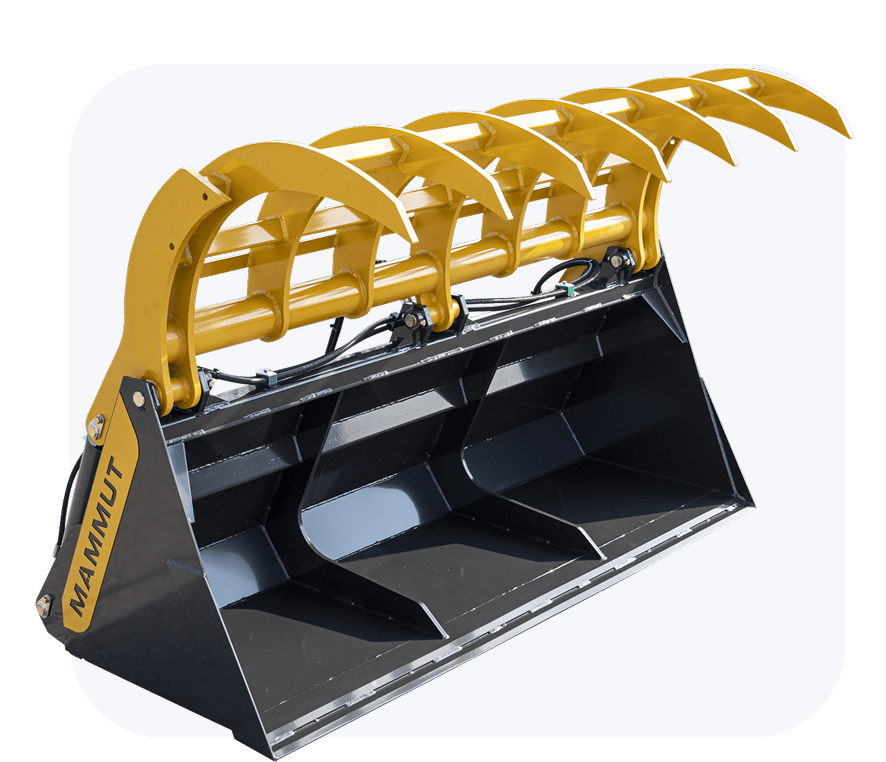

Silo Grip PREMIUM

A professional silage grab bucket designed for high-capacity operations.

The PREMIUM Silo Grip is built for demanding applications and large carrier vehicles, offering reliable handling of silage and other materials. With working widths from 1.80 m to 2.60 m, it is ideal for high-volume tasks, while models from 2.20 m feature a reinforced central mounting for increased stability.

professional-grade model

ideal for large wheel loaders and telehandlers

from 2.20 m with additional centre mounting

working widths from 1.80 m to 2.60 m

PREMIUM Silo Grip standard equipment

Rugged top gripper

Two or three hydraulic cylinders (depending on Type) Ø 100 mm

Closed bucket bottom including Hardox scraper strips

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SG 180 P	SG 200 P	SG 220 P	SG 240 P	SG 260 P
Bucket width	1,80 m	2,00 m	2,20 m	2,40 m	2,60 m
Net weight	660 kg	760 kg	850 kg	940 kg	1.050 kg
Volume	1,05 m³	1,15 m³	1,25 m³	1,35 m³	1,45 m³
Cylinder Ø	100 mm	100 mm	100 mm	100 mm	100 mm
Number of cylinders	2	2	2	2	2
Mounting points	2	2	3	3	3

Accessories

Attachments

Bolted attachment plates provide a wide range of mounting options for front loaders and farmyard loaders, allowing easy adaptation to different carrier vehicles. Optional universal perforated plates enable quick connection to machines with varying attachment systems, improving flexibility while saving time and costs in daily operation.

Additional tines

Optional side tines help retain fine material during transport, improving handling of loose or small-particle silage. The set includes two additional tines for increased efficiency and cleaner operation.

Valves

Optional safety valves protect the system under high operating pressure and improve control during use. A pressure relief valve prevents damage above 210 bar, while a load-holding valve helps avoid unintended closing of the gripper on open hydraulic systems.

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the gripper bucket, ensuring clean operation without oil loss. A wide range of options is available to match different machine setups.
