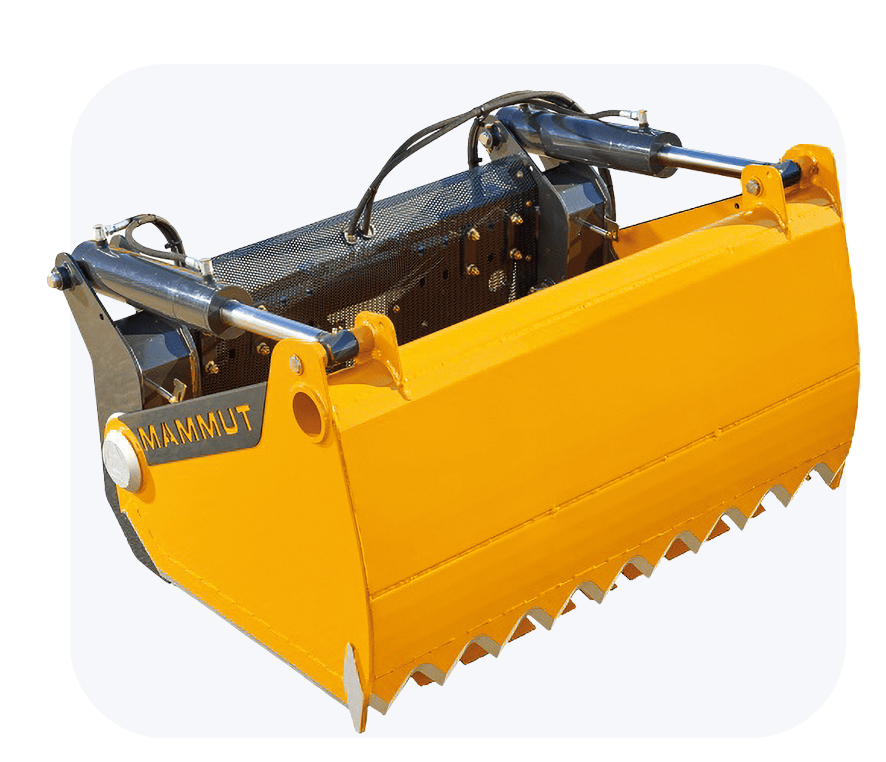

Silo Bucket N

A compact shear bucket designed for smaller loaders and precise silage handling.

The SILO BUCKET Type N features a flat and lightweight design, making it ideal for farmyard loaders and smaller front loaders. Despite its compact size, it delivers efficient cutting performance and easy handling in daily operations.

compact design

ideal for smaller carrier vehicles

block height approx. 70 cm

capacity from 0.64 m³ to 0.92 m³

Silo Bucket N as standard equipment

Robust cutting bucket with welded Hardox cutter

Two hydraulic cylinders, Ø 100 mm

Closed bucket bottom including Hardox scraper strips

Powder-coated carrier frame

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SB 120 N	SB 150 N	SB 170 N
Block width	1,19 m	1,44 m	1,69 m
Block height	0,70 m	0,70 m	0,70 m
Block depth	0,78 m	0,78 m	0,78 m
Fill volume	0,64 m³	0,78 m³	0,92 m³
Cylinders Ø (2 pieces)	100 mm	100 mm	100 mm
Net weight	490 kg	550 kg	610 kg

Accessories

Attachments

A wide range of attachment options allows the SILO BUCKET to be used with front loaders, farmyard loaders, wheel loaders and telehandlers, ensuring quick and easy implement changes without time-consuming adjustments. All attachments are bolted for simple replacement, with no welding required, making it easy to adapt the machine when switching between different carrier vehicles.

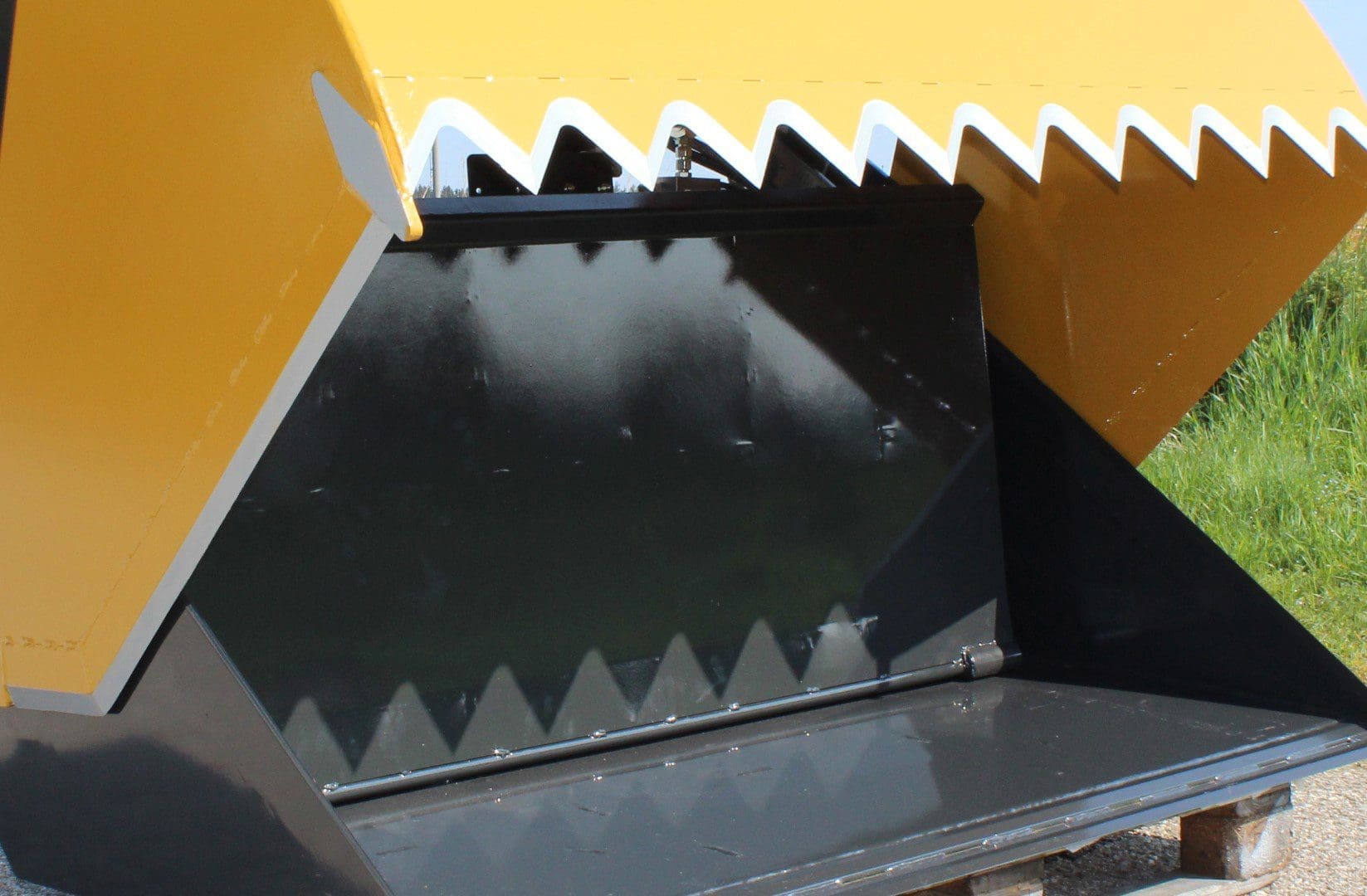

Pusher

An optional hydraulic pusher enables easy and controlled unloading of silage blocks, making it ideal for feeding systems, storage and loading feed mixers. It is especially useful in low-clearance areas, allowing material to be transferred without tipping the bucket. For operation, a double-acting hydraulic function is required, with a sequence valve available as an option for machines with limited hydraulic connections.

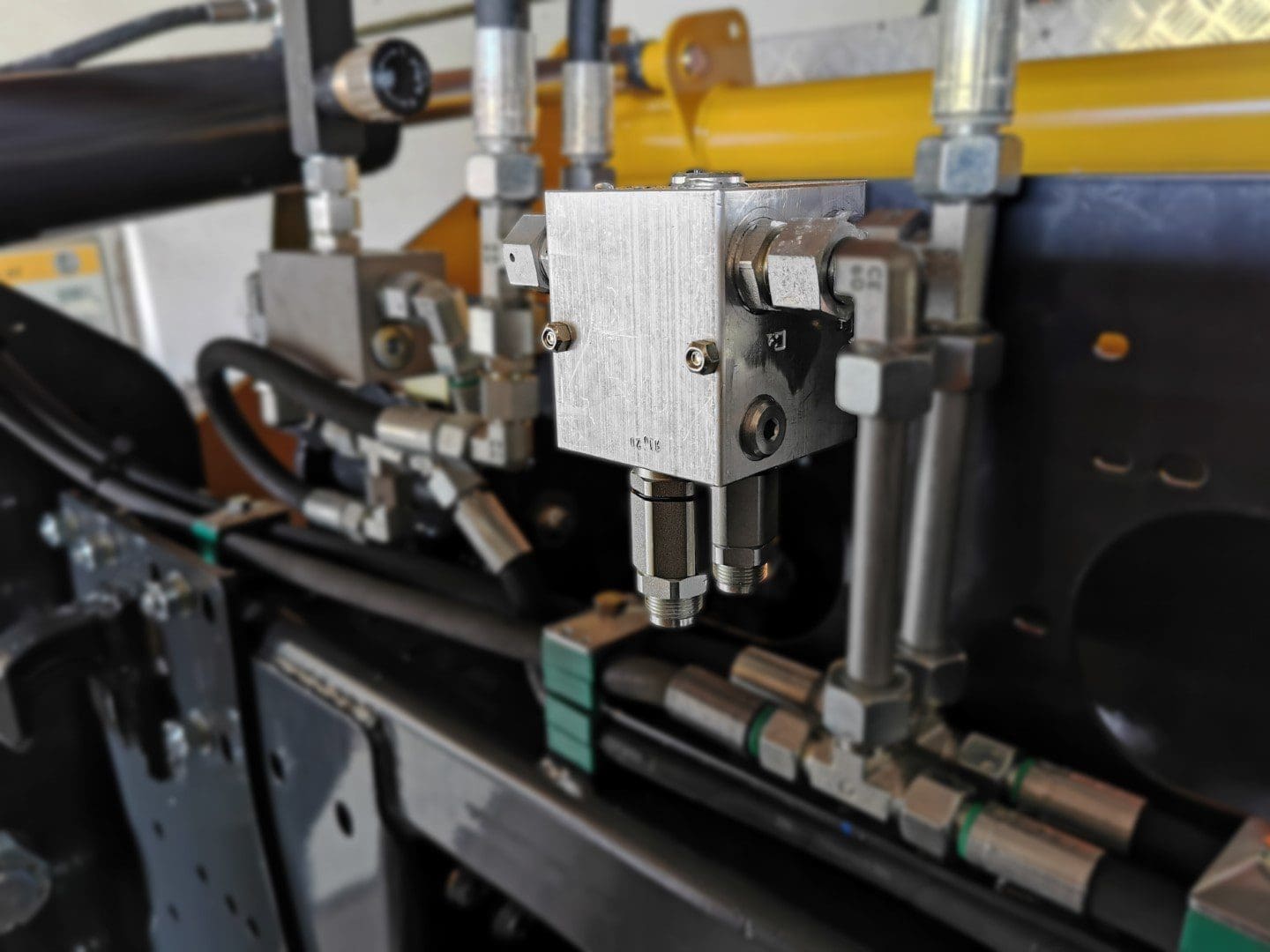

Valves

For machines equipped with hydraulic accessories such as a pusher, additional hydraulic valves are recommended to ensure smooth operation. This is especially useful for carrier vehicles with limited hydraulic connections, providing a simple and efficient solution.

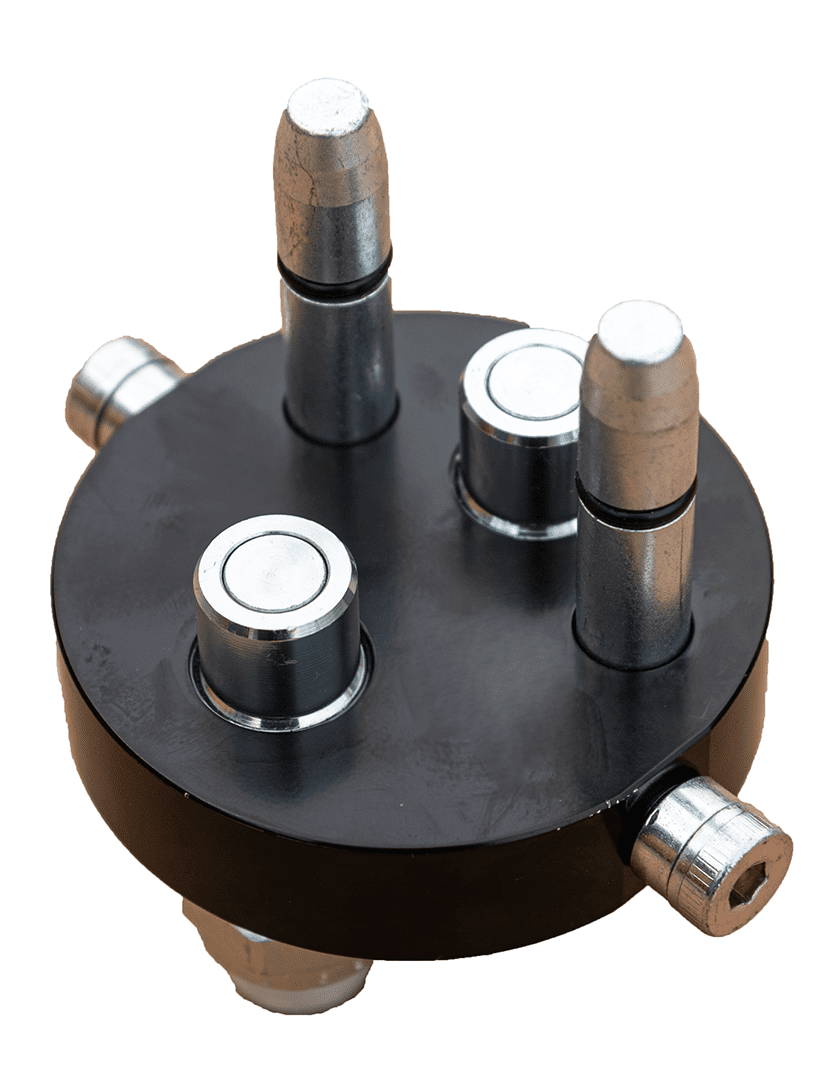

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the shear bucket, ensuring clean and reliable operation. A range of options is available to match different machine setups.
