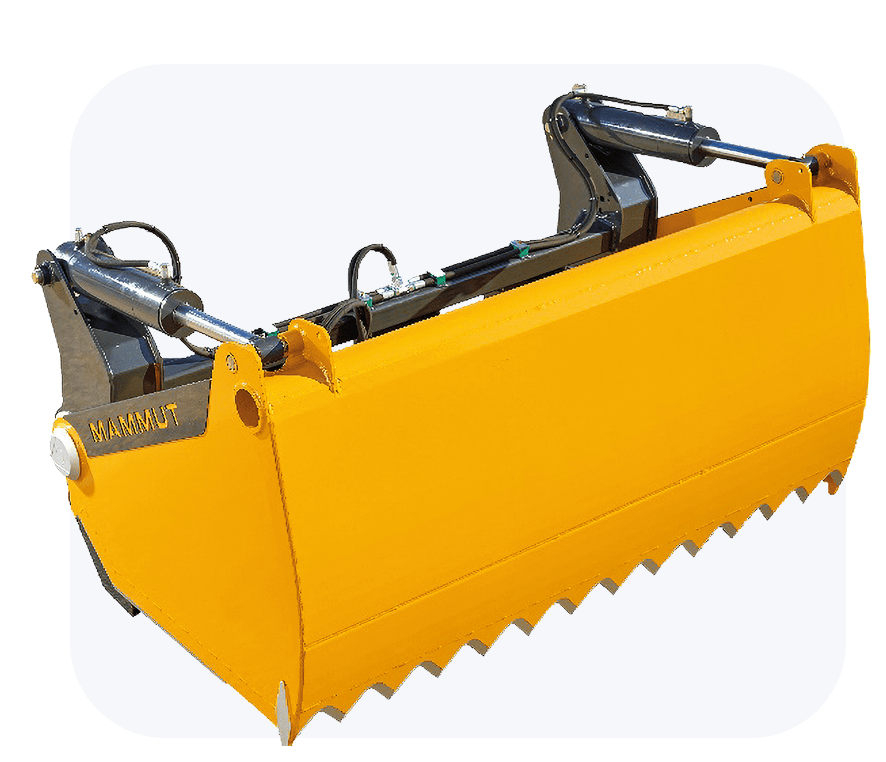

Silo Bucket M

A versatile mid-sized shear bucket for a wide range of applications.

The SILO BUCKET Type M offers a balanced combination of capacity and flexibility, making it ideal for front loaders, telehandlers and small to medium wheel loaders. With a block height of approx. 80 cm, it ensures efficient and reliable material handling in daily operations.

popular all-rounder model

ideal for front loaders, telehandlers and small to medium wheel loaders

block height approx. 80 cm

capacity from 1.05 m³ to 1.51 m³

Standard equipment for the Silo Bucket M

Robust cutting bucket with welded Hardox cutter

Two hydraulic cylinders, Ø 110 mm

Closed bucket bottom including Hardox scraper strips

Powder-coated carrier frame

Hydraulic hoses and couplings

Basic equipment without any attachments

Maximum operating pressure 210 bar

Technical Specifications

	SB 170 M	SB 195 M	SB 220 M	SB 240 M
Block width	1,69 m	1,94 m	2,19 m	2,41 m
Block height	0,80 m	0,80 m	0,80 m	0,80 m
Block depth	0,78 m	0,78 m	0,78 m	0,78 m
Fill volume	1,05 m³	1,21 m³	1,36 m³	1,51 m³
Cylinders Ø (2 pieces)	110 mm	110 mm	110 mm	110 mm
Net weight	750 kg	830 kg	910 kg	990 kg

Accessories

Attachments

A wide range of attachment options allows the SILO BUCKET to be used with front loaders, farmyard loaders, wheel loaders and telehandlers, ensuring quick and easy implement changes without time-consuming adjustments. All attachments are bolted for simple replacement, with no welding required, making it easy to adapt the machine when switching between different carrier vehicles.

Increased height of corn plate

A closed carrier frame comes as standard, preventing material loss during transport and ensuring clean handling of loose feed. The high rear wall is especially beneficial when working with corn silage, spent grains or other fine materials, keeping the load securely in place even during movement.

Pusher

An optional hydraulic pusher enables easy and controlled unloading of silage blocks, making it ideal for feeding systems, storage and loading feed mixers. It is especially useful in low-clearance areas, allowing material to be transferred without tipping the bucket. For operation, a double-acting hydraulic function is required, with a sequence valve available as an option for machines with limited hydraulic connections.

Valves

For machines equipped with hydraulic accessories such as a pusher, additional hydraulic valves are recommended to ensure smooth operation. This is especially useful for carrier vehicles with limited hydraulic connections, providing a simple and efficient solution.

Multi-hose coupler

Optional HYDROFIX multi-hose couplers enable quick and effortless connection and disconnection of the shear bucket, ensuring clean and reliable operation. A range of options is available to match different machine setups.
