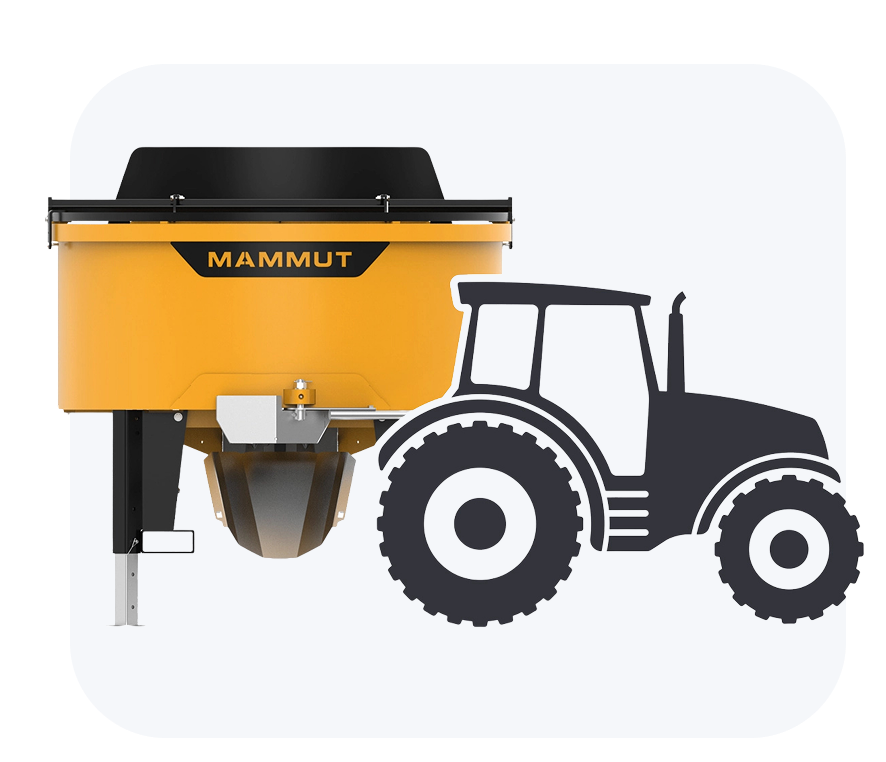

Pan Mixer for Tractors

Three-point chain

The TURBO MIX pan mixer is designed for seamless tractor integration, with a standard attachment system ensuring quick and reliable setup.

For added flexibility, the optional three-point chain allows easy adaptation to different carrier vehicles. This makes it especially well-suited for use with smaller tractors, maintaining stable and efficient operation.

With the centre of gravity positioned close to the tractor, the mixer delivers improved balance, greater control, and safer handling in everyday use.

‍

Drive shaft

A range of PTO shafts is available to match different TURBO MIX models, ensuring smooth and reliable operation—size III is suited for TM 95 to TM 150, while TM 180 and TM 200 use size IV, making it easy to select the right configuration and integrate the mixer seamlessly with your tractor for straightforward setup and consistent performance.

Silo bag filling option

With the SILO FILL option, the TURBO MIX becomes a versatile unit that simplifies silo bag filling without compromising its core function—during standard concrete mixing, the opening remains securely covered, while the filling spout can be quickly installed via a simple screw connection when needed; once in place, the process is straightforward and efficient—position the bag, pull the handle, fill, and close—no extra effort or additional labour required, making SILO FILL a practical extension that increases flexibility and saves time both on construction sites and in agricultural use.

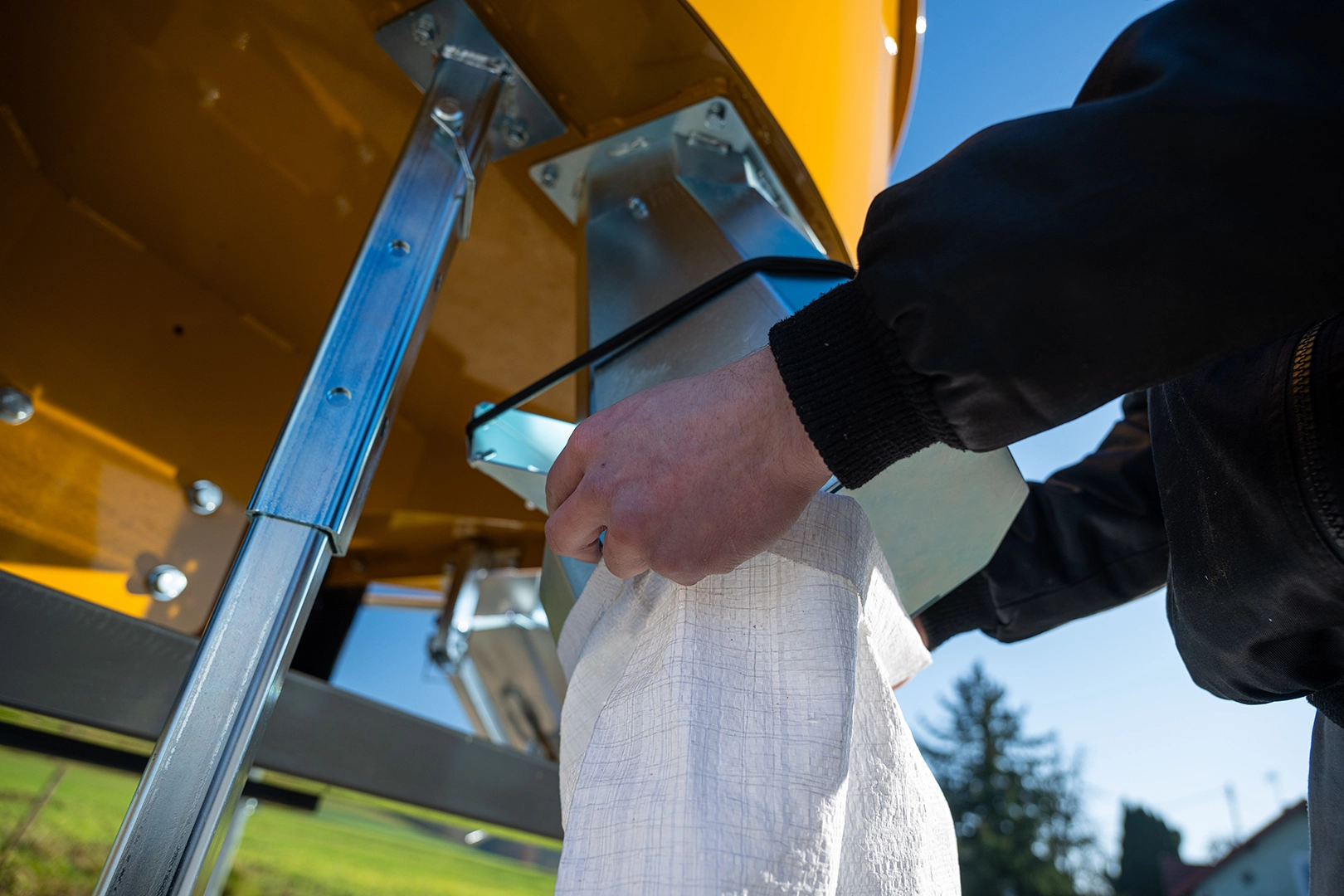

Sandbag filling option

With the QUICK FILL option, the TURBO MIX becomes a reliable solution for fast and efficient sandbag filling, especially in time-critical situations. The package includes a patented filling spout for smooth, effortless operation, along with raised support feet and a practical storage area that improve safety and workflow. The process is simple and intuitive—position the bag, pull the spout, fill, and close—minimising effort and saving valuable time when it matters most. This makes the TURBO MIX a versatile and dependable machine, ready to perform both on construction sites and in demanding emergency conditions.

‍

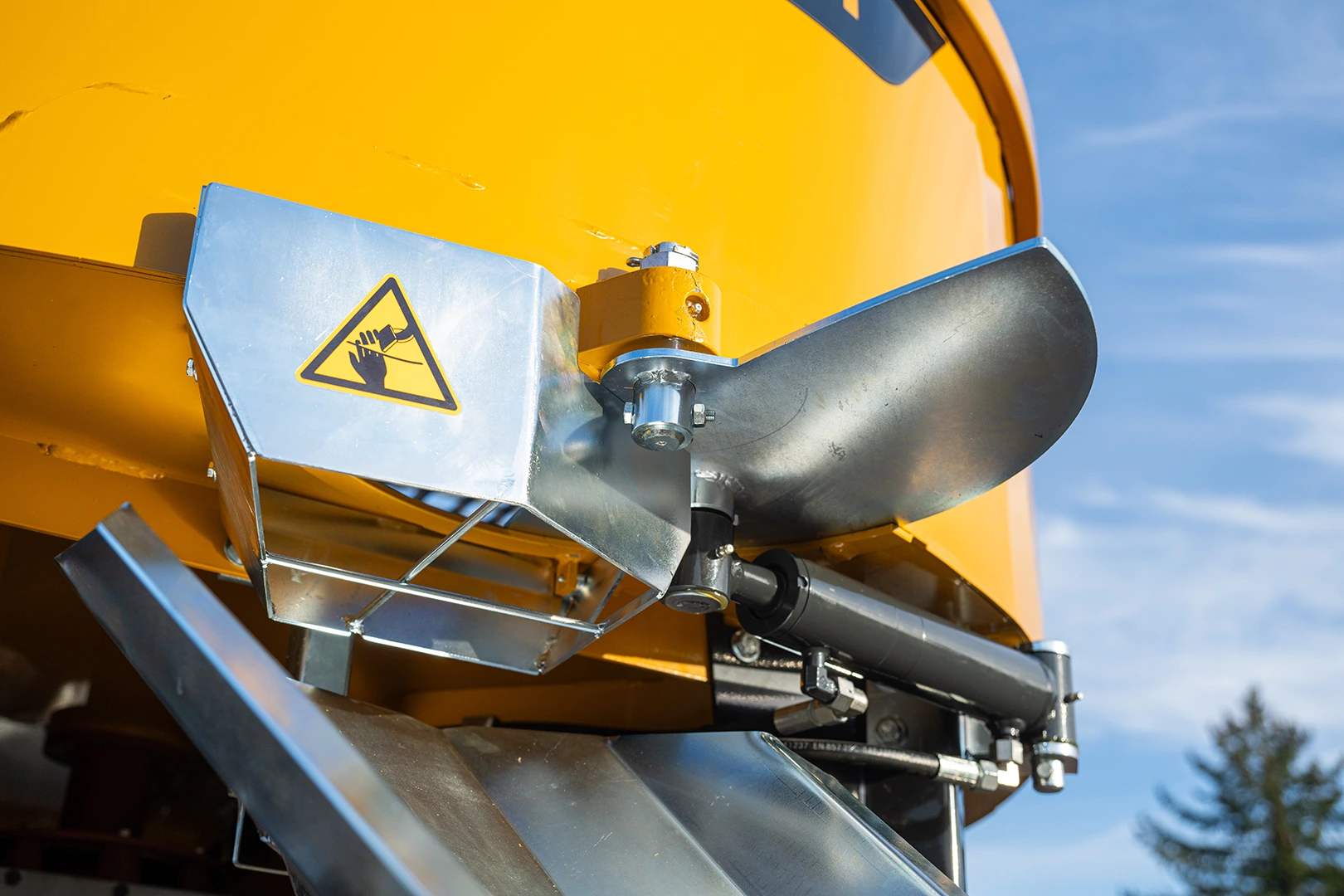

Hydraulic pusher opening

All TURBO MIX pan mixer models come standard with a mechanical sliding outlet and integrated splash guard, ensuring reliable and clean operation. For added convenience, an optional hydraulic control allows the outlet to be operated directly from the tractor, making the concreting process smoother and more efficient. Thanks to its screw-on design, the hydraulic system can be easily retrofitted at any time, offering flexibility as your needs evolve.

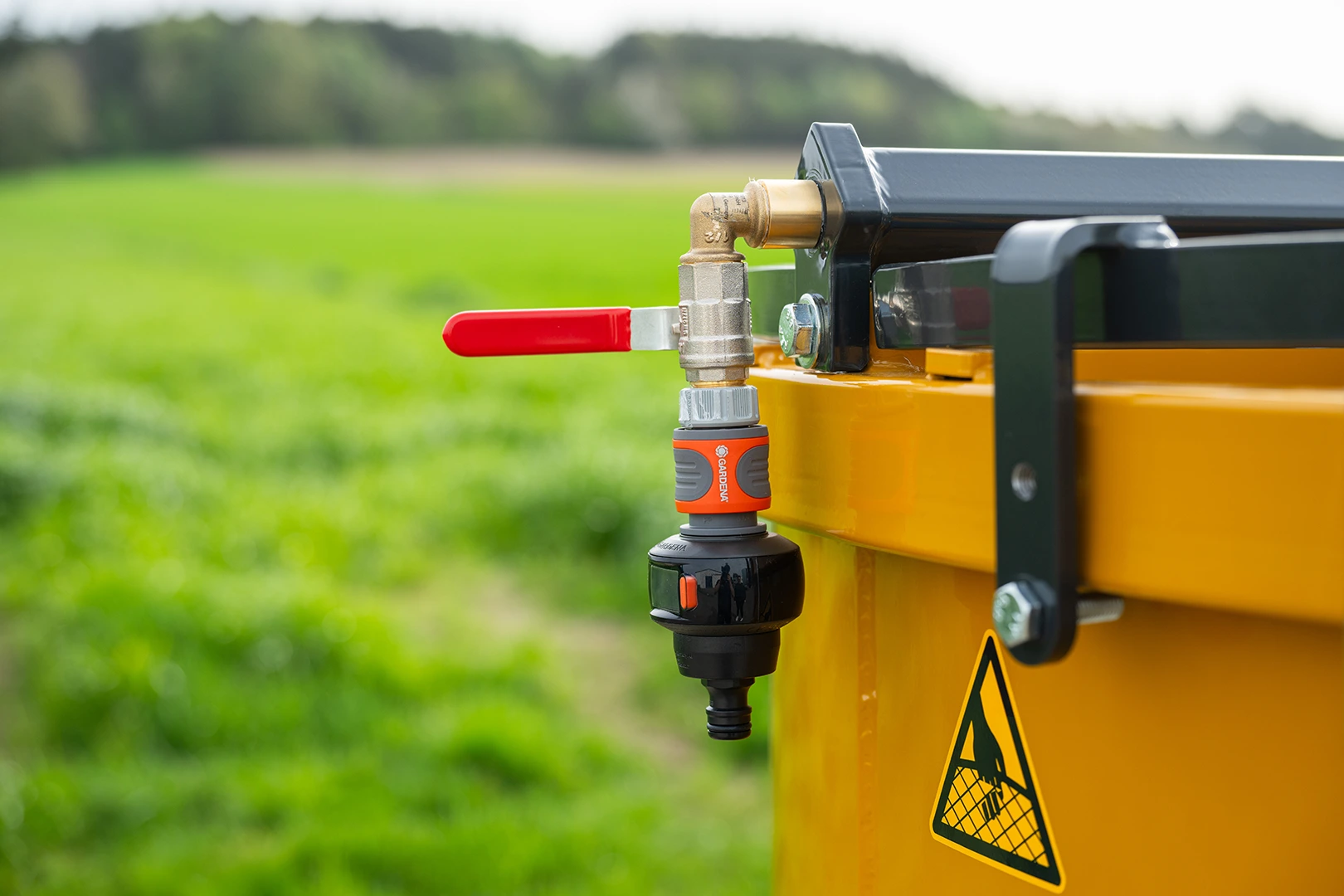

Water connection

The TURBO MIX pan mixer features an integrated water supply system as standard, with a built-in pipe in the protective grid and precisely positioned openings that direct water straight into the mix for improved control of the mixing ratio. A 1/2 inch threaded connection ensures easy setup, while an optional upgrade with a water meter provides even greater convenience and direct access to water, allowing for more accurate and efficient operation.

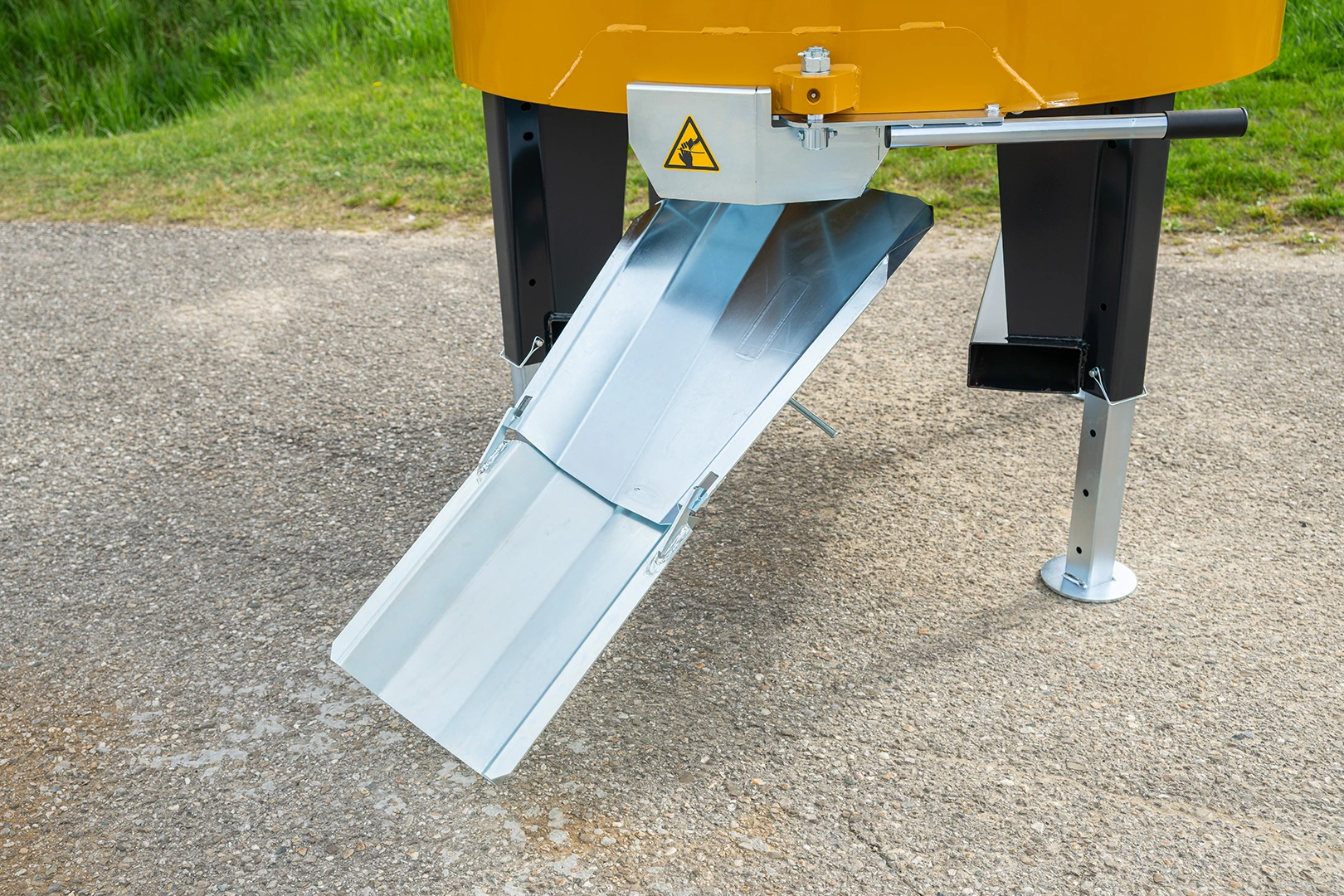

Chute extension

All TURBO MIX models come equipped with a 180° swivelling discharge chute as standard, allowing for precise and controlled emptying of the concrete. For added reach and accuracy, an optional chute extension can be easily hooked onto the existing chute, making it easier to direct the flow exactly where needed. This results in cleaner work, improved control, and greater comfort on site, while remaining fully compatible across all TURBO MIX models.
