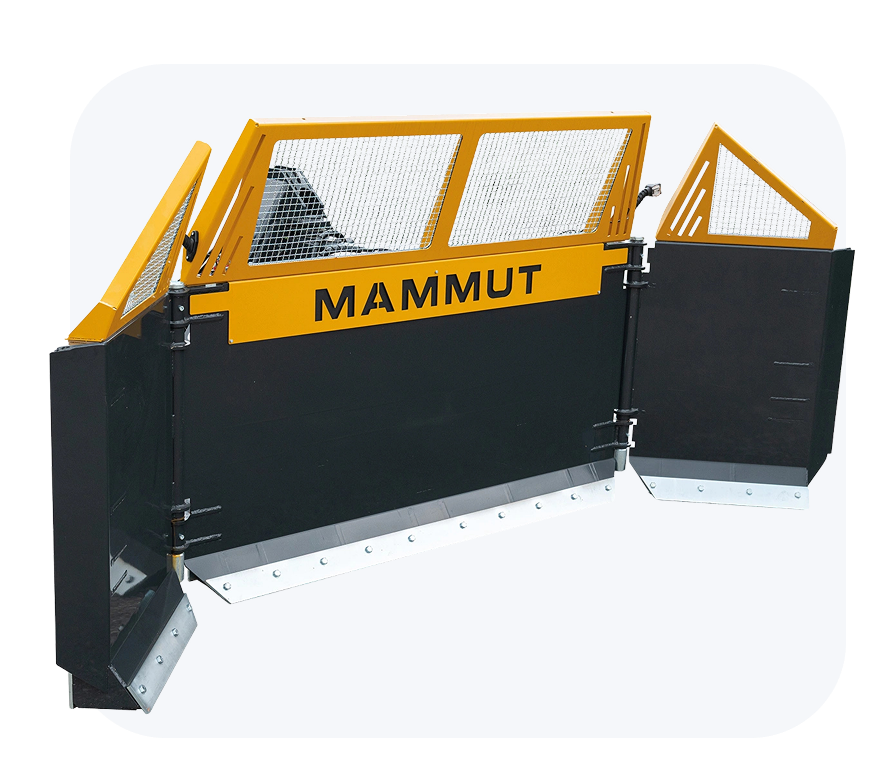

Silo Push SP 400

A high-performance silage dozer blade designed for efficient maize distribution.

The SILO PUSH ensures even spreading of finely chopped maize across the bunker silo, creating ideal conditions for effective compaction and improved silage quality. Its wide working width, robust construction and flexible control system support efficient and reliable operation in demanding conditions.

190° foldable side wings

stable headstock

Hardox steel sliding shoe

robust scraper strips

Standard equipment SILO PUSH

190° hydraulically folding side wings (2 x double-acting necessary)

Stable shield base with HARDOX steel

Robust scraper bars

Can be filled with magnetite sand

Three-point linkage suitable for category 2, 3 and 4

Return elevation

Technical Specifications

	SILO PUSH SP 400
Working width	4.00 m
Transport width	2.50 m
Total height	1.62 m
Weight	1,250 kg
Power requirement	ab 150 PS

Accessories

Pivoting device

The hydraulic pivoting device allows the SILO PUSH to be swivelled up to 15° on both sides, ensuring precise and flexible control during operation. Dual cylinders provide stable movement, even with fully folded side wings, while the system makes it easier to move away from silo walls, improving workflow and overall efficiency.

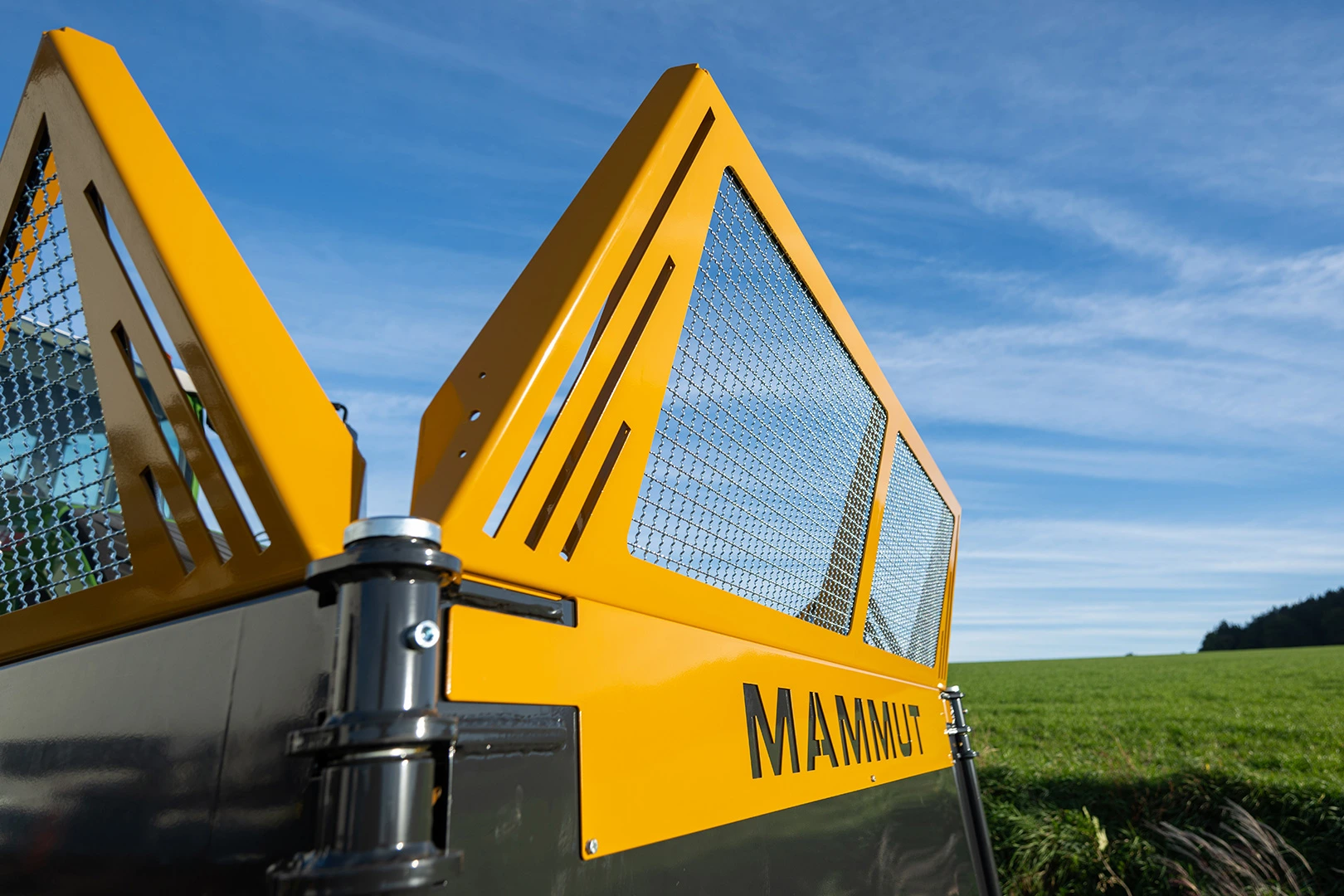

Magnetite filling

An optional magnetite ballast in the centre section increases the weight by 400 kg, significantly improving compaction performance. The added pressure ensures more compact and air-free silage, supporting optimal fermentation and reducing nutrient losses for higher feed quality.

Electrical control system

All hydraulic functions can be conveniently controlled via the tractor’s joystick, ensuring smooth and efficient operation. If additional hydraulic connections are required, an optional electrical control system can be installed for easier control.

Lighting package

An optional lighting package improves visibility during both operation and transport. Integrated floodlights illuminate the working area in low-light conditions, allowing extended working hours, while side lights enhance safety when driving on public roads.

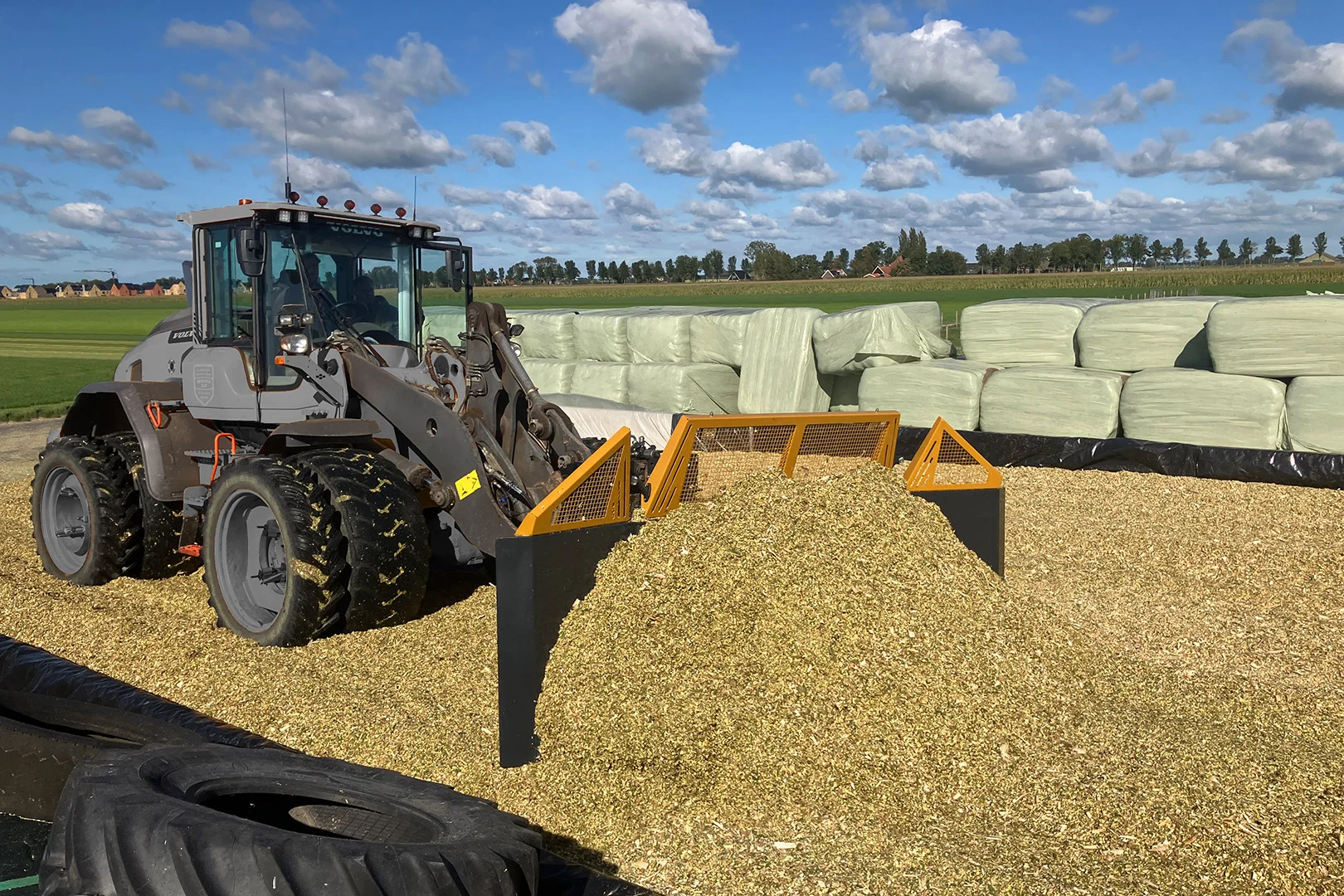

Wheel loader attachment

The SILO PUSH can be equipped with an optional wheel loader attachment, allowing it to be used across different carrier vehicles and expanding its range of applications.
